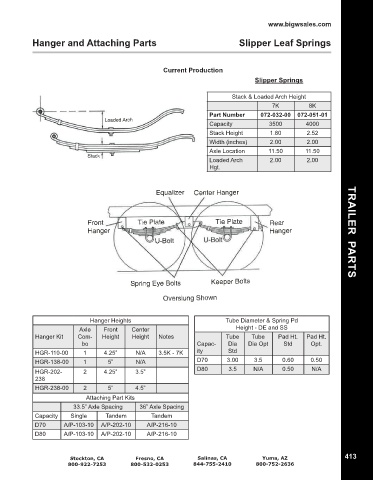

Hanger and Attaching Parts Slipper Leaf Springs
Current Production
Slipper Springs
Stack & Loaded Arch Height
7K 8K
Part Number 072-032-00 072-051-01
Capacity 3500 4000
Stack Height 1.80 2.52
Width (inches) 2.00 2.00
Axle Location 11.50 11.50
Loaded Arch 2.00 2.00
Hgt. TRAILER PARTS
Hanger Heights Tube Diameter & Spring Pd
Axle Front Center Height - DE and SS
Hanger Kit Com- Height Height Notes Tube Tube Pad Ht. Pad Ht.
bo Capac- Dia Dia Opt Std Opt.
HGR-110-00 1 4.25” N/A 3.5K - 7K ity Std
HGR-138-00 1 5” N/A D70 3.00 3.5 0.60 0.50
HGR-202- 2 4.25” 3.5” D80 3.5 N/A 0.50 N/A
238
HGR-238-00 2 5” 4.5”
Attaching Part Kits
33.5” Axle Spacing 36” Axle Spacing
Capacity Single Tandem Tandem
D70 A/P-103-10 A/P-202-10 A/P-216-10
D80 A/P-103-10 A/P-202-10 A/P-216-10
