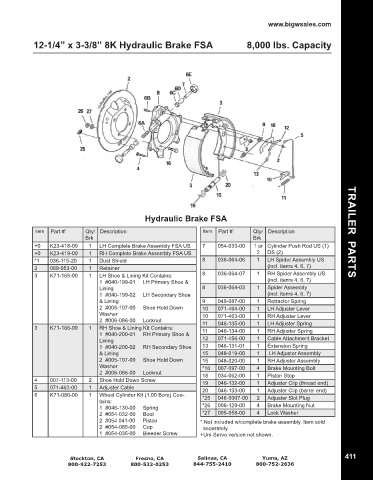

12-1/4” x 3-3/8” 8K Hydraulic Brake FSA 8,000 lbs. Capacity

Hydraulic Brake FSA

Item Part #` Qty/ Description Item Part #` Qty/ Description TRAILER PARTS
Brk Brk
+0 K23-418-00 1 LH Complete Brake Assembly FSA US 7 054-033-00 1 or Cylinder Push Rod US (1)
+0 K23-419-00 1 RH Complete Brake Assembly FSA US 2 DS (2)
*1 036-115-20 1 Dust Shield 8 036-064-06 1 LH Spider Assembly US
2 069-053-00 1 Retainer (incl. items 4, 6, 7)
3 K71-165-00 1 LH Shoe & Lining Kit Contains: 8 036-064-07 1 RH Spider Assembly US
1 #040-199-01 LH Primary Shoe & (incl. items 4, 6, 7)
Lining 8 036-064-03 1 Spider Assembly
1 #040-199-02 LH Secondary Shoe (incl. items 4, 6, 7)
& Lining 9 046-087-00 1 Retractor Spring
2 #005-107-00 Shoe Hold Down 10 071-464-00 1 LH Adjuster Lever
Washer 10 071-463-00 1 RH Adjuster Lever
2 #006-086-00 Locknut 11 046-135-00 1 LH Adjuster Spring
3 K71-166-00 1 RH Shoe & Lining Kit Contains:
1 #040-200-01 RH Primary Shoe & 11 046-134-00 1 RH Adjuster Spring
Lining 12 071-456-00 1 Cable Attachment Bracket
1 #040-200-02 RH Secondary Shoe 13 046-131-01 1 Extension Spring
& Lining 15 048-019-00 1 LH Adjuster Assembly
2 #005-107-00 Shoe Hold Down 15 048-020-00 1 RH Adjuster Assembly
Washer *16 007-097-00 4 Brake Mounting Bolt
2 #006-086-00 Locknut 18 034-062-00 1 Piston Stop
4 007-113-00 2 Shoe Hold Down Screw 19 046-132-00 1 Adjuster Clip (thread end)
5 071-462-00 1 Adjuster Cable 20 046-133-00 1 Adjuster Clip (barrel end)
6 K71-080-00 1 Wheel Cylinder Kit (1.00 Bore) Con- *25 046-0007-00 2 Adjuster Slot Plug
tains:
1 #046-130-00 Spring *26 006-129-00 4 Brake Mounting Nut
2 #054-032-00 Boot *27 005-058-00 4 Lock Washer
2 #054 041-00 Piston * Not included w/complete brake assembly. Item sold
2 #054-085-00 Cup separately.
1 #054-035-00 Bleeder Screw +Uni-Servo version not shown.
