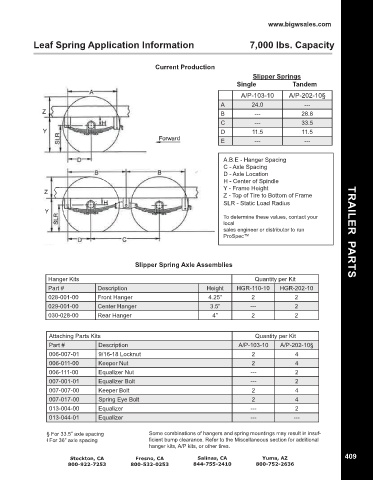

Leaf Spring Application Information 7,000 lbs. Capacity
Current Production
Slipper Springs
Single Tandem
A/P-103-10 A/P-202-10§
A 24.0 ---
B --- 28.8
C --- 33.5
D 11.5 11.5
E --- ---
A.B.E - Hanger Spacing
C - Axle Spacing
D - Axle Location
H - Center of Spindle
Y - Frame Height
Z - Top of Tire to Bottom of Frame
SLR - Static Load Radius
To determine these values, contact your
local
sales engineer or distributor to run TRAILER PARTS
ProSpec™
Slipper Spring Axle Assemblies
Hanger Kits Quantity per Kit
Part # Description Height HGR-110-10 HGR-202-10
028-001-00 Front Hanger 4.25” 2 2
029-001-00 Center Hanger 3.5” --- 2
030-028-00 Rear Hanger 4” 2 2
Attaching Parts Kits Quantity per Kit
Part # Description A/P-103-10 A/P-202-10§
006-007-01 9/16-18 Locknut 2 4
006-011-00 Keeper Nut 2 4
006-111-00 Equalizer Nut --- 2
007-001-01 Equalizer Bolt --- 2
007-007-00 Keeper Bolt 2 4
007-017-00 Spring Eye Bolt 2 4
013-004-00 Equalizer --- 2
013-044-01 Equalizer --- ---
§ For 33.5” axle spacing Some combinations of hangers and spring mountings may result in insuf-
ⱡ For 36” axle spacing ficient bump clearance. Refer to the Miscellaneous section for additional
hanger kits, A/P kits, or other tires.
