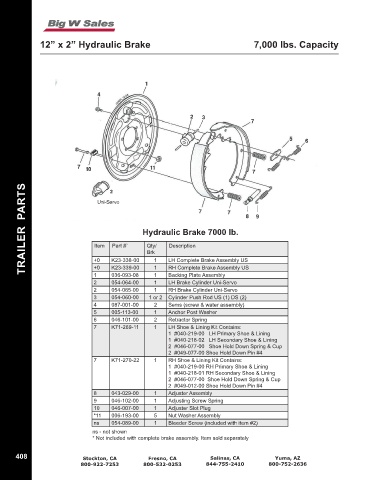

12” x 2” Hydraulic Brake 7,000 lbs. Capacity

TRAILER PARTS Item Part #` Hydraulic Brake 7000 lb.

Qty/
Description
Brk
+0
1
K23-339-00
RH Complete Brake Assembly US
+0
036-093-08
1
Backing Plate Assembly
1
1
054-064-00
2 K23-338-00 1 LH Complete Brake Assembly US
LH Brake Cylinder Uni-Servo
2 054-065-00 1 RH Brake Cylinder Uni-Servo
3 054-060-00 1 or 2 Cylinder Push Rod US (1) DS (2)
4 087-001-00 2 Sems (screw & water assembly)
5 005-113-00 1 Anchor Post Washer
6 046-101-00 2 Retractor Spring
7 K71-269-11 1 LH Shoe & Lining Kit Contains:
1 #040-219-00 LH Primary Shoe & Lining
1 #040-218-02 LH Secondary Shoe & Lining
2 #046-077-00 Shoe Hold Down Spring & Cup
2 #049-077-00 Shoe Hold Down Pin #4
7 K71-270-22 1 RH Shoe & Lining Kit Contains:
1 #040-219-00 RH Primary Shoe & Lining
1 #040-218-01 RH Secondary Shoe & Lining
2 #046-077-00 Shoe Hold Down Spring & Cup
2 #049-012-00 Shoe Hold Down Pin #4
8 043-029-00 1 Adjuster Assembly
9 046-102-00 1 Adjusting Screw Spring
10 046-007-00 1 Adjuster Slot Plug
*11 006-193-00 5 Nut Washer Assembly
ns 054-089-00 1 Bleeder Screw (included with item #2)
ns - not shown
* Not included with complete brake assembly. Item sold separately
