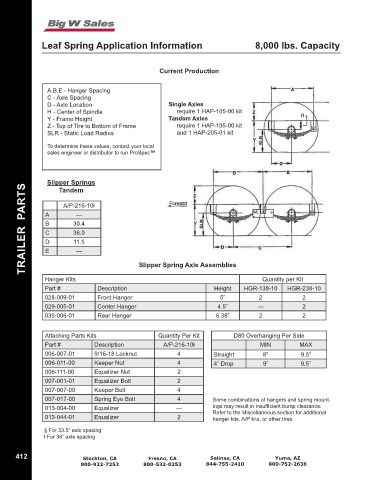

Leaf Spring Application Information 8,000 lbs. Capacity

Current Production

A.B.E - Hanger Spacing
C - Axle Spacing
D - Axle Location Single Axles
H - Center of Spindle require 1 HAP-105-00 kit
Y - Frame Height Tandem Axles
Z - Top of Tire to Bottom of Frame require 1 HAP-105-00 kit
SLR - Static Load Radius and 1 HAP-205-01 kit

To determine these values, contact your local
sales engineer or distributor to run ProSpec™

Slipper Springs
TRAILER PARTS A 30.4
Tandem
A/P-216-10ⱡ
---
B
C
36.0
D
11.5
E
---

Hanger Kits Slipper Spring Axle Assemblies Quantity per Kit
Part # Description Height HGR-138-10 HGR-238-10
028-009-01 Front Hanger 5” 2 2
029-005-01 Center Hanger 4.5” --- 2
030-006-01 Rear Hanger 6.38” 2 2

Attaching Parts Kits Quantity Per Kit D80 Overhanging Per Side
Part # Description A/P-216-10ⱡ MIN MAX
006-007-01 9/16-18 Locknut 4 Straight 8” 9.5”
006-011-00 Keeper Nut 4 4” Drop 9” 9.5”
006-111-00 Equalizer Nut 2
007-001-01 Equalizer Bolt 2
007-007-00 Keeper Bolt 4
007-017-00 Spring Eye Bolt 4 Some combinations of hangers and spring mount-
013-004-00 Equalizer --- ings may result in insufficient bump clearance.
Refer to the Miscellaneous section for additional
013-044-01 Equalizer 2 hanger kits, A/P kits, or other tires.

§ For 33.5” axle spacing
ⱡ For 36” axle spacing
