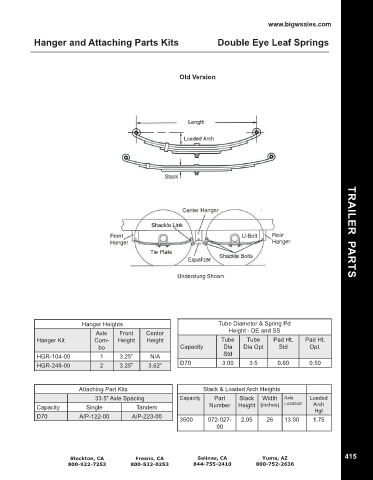

Hanger and Attaching Parts Kits Double Eye Leaf Springs
Old Version
Hanger Heights Tube Diameter & Spring Pd TRAILER PARTS
Axle Front Center Height - DE and SS
Hanger Kit Com- Height Height Tube Tube Pad Ht. Pad Ht.
bo Capacity Dia Dia Opt Std Opt.
HGR-104-00 1 3.25” N/A Std
HGR-248-00 2 3.25” 3.62” D70 3.00 3.5 0.60 0.50
Attaching Part Kits Stack & Loaded Arch Heights
33.5” Axle Spacing Capacity Part Stack Width Axle Loaded
Capacity Single Tandem Number Height (inches) Location Arch
Hgt
D70 A/P-122-00 A/P-223-00
3500 072-027- 2.05 26 13.00 1.75
00
