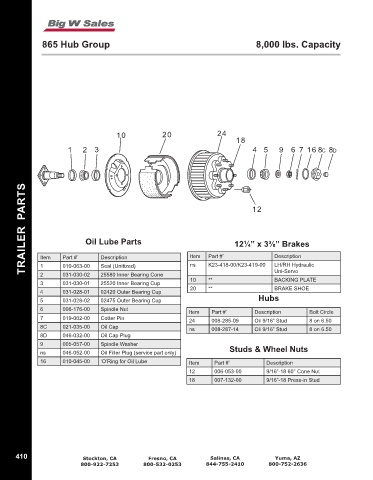

Page 412 - Catalog

865 Hub Group 8,000 lbs. Capacity

10 20 24
18
1 2 3 4 5 9 6 7 16 8C 8D

TRAILER PARTS Oil Lube Parts Item Part #` 121⁄4” x 33⁄8” Brakes

12

Description
Item
010-063-00
Seal (Unitized)
1
Uni-Servo
031-030-02
2
25580 Inner Bearing Cone
10
**
BACKING PLATE
25520 Inner Bearing Cup
3 Part #` Description ns K23-418-00/K23-419-00 LH/RH Hydraulic
031-030-01
4 031-028-01 02420 Outer Bearing Cup 20 ** BRAKE SHOE
5 031-028-02 02475 Outer Bearing Cup Hubs
6 006-176-00 Spindle Nut Item Part #` Description Bolt Circle
7 019-002-00 Cotter Pin 24 008-285-09 Oil 9/16” Stud 8 on 6.50
8C 021-035-00 Oil Cap ns 008-287-14 Oil 9/16” Stud 8 on 6.50
8D 046-032-00 Oil Cap Plug
9 005-057-00 Spindle Washer
ns 046-052-00 Oil Filler Plug (service part only) Studs & Wheel Nuts
16 010-045-00 ‘O’Ring for Oil Lube Item Part #` Description
12 006-053-00 9/16”-18 60° Cone Nut
18 007-132-00 9/16”-18 Press-in Stud

410 Stockton, CA Fresno, CA Salinas, CA Yuma, AZ Stockton, CA Fresno, CA Salinas, CA Yuma, AZ
800-922-7253 800-532-0253 844-755-2410 800-752-2636 800-922-7253 800-532-0253 844-755-2410 800-752-2636
