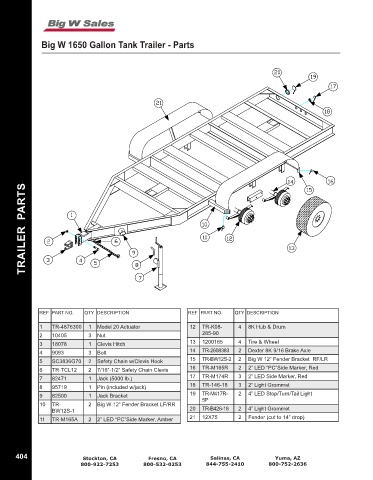

Big W 1650 Gallon Tank Trailer - Parts
TRAILER PARTS
REF PART NO. QTY DESCRIPTION REF PART NO. QTY DESCRIPTION
1 TR-4876300 1 Model 20 Actuator 12 TR-K08- 4 8K Hub & Drum
2 10405 3 Nut 285-90
3 18078 1 Clevis Hitch 13 1200165 4 Tire & Wheel
4 9093 3 Bolt 14 TR-2608383 2 Dexter 8K 9/16 Brake Axle
5 SC3836G70 2 Safety Chain w/Clevis Hook 15 TR-BW12S-2 2 Big W 12” Fender Bracket RF/LR
6 TR-TCL12 2 7/16”-1/2” Safety Chain Clevis 16 TR-M165R 2 2” LED “PC”Side Marker, Red
7 82471 1 Jack (5000 lb.) 17 TR-M174R 3 2” LED Side Marker, Red
8 95719 1 Pin (included w/jack) 18 TR-146-18 3 2” Light Grommet
9 82500 1 Jack Bracket 19 TR-M417R- 2 4” LED Stop/Turn/Tail Light
5P
10 TR- 2 Big W 12” Fender Bracket LF/RR
BW12S-1 20 TR-B426-18 2 4” Light Grommet
11 TR-M165A 2 2” LED “PC”Side Marker, Amber 21 12X75 2 Fender (cut to 14” drop)
