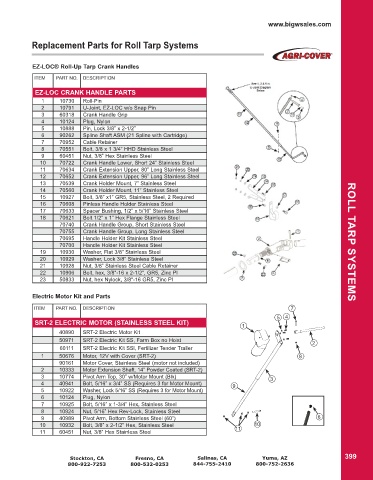

Replacement Parts for Roll Tarp Systems

EZ-LOC® Roll-Up Tarp Crank Handles

ITEM PART NO. DESCRIPTION
EZ-LOC CRANK HANDLE PARTS
1 10730 Roll-Pin
2 10791 U-Joint, EZ-LOC w/o Snap Pin
3 60318 Crank Handle Grip
4 10124 Plug, Nylon
5 10888 Pin, Lock 3/8” x 2-1/2”
6 90262 Spline Shaft ASM (21 Spline with Cartridge)
7 70952 Cable Retainer
8 70551 Bolt, 3/8 x 1 3/4” HHD Stainless Steel
9 60451 Nut, 3/8” Hex Stainless Steel
10 70722 Crank Handle Lower, Short 24” Stainless Steel
11 70634 Crank Extension Upper, 80” Long Stainless Steel
12 70652 Crank Extension Upper, 96” Long Stainless Steel
13 70539 Crank Holder Mount, 7” Stainless Steel
14 70560 Crank Holder Mount, 11” Stainless Steel
15 10927 Bolt, 3/8” x1” GR5, Stainless Steel, 2 Required
16 70608 Pinless Handle Holder Stainless Steel
17 70633 Spacer Bushing, 1/2” x 5/16” Stainless Steel
18 70621 Bolt 1/2” x 1” Hex Flange Stainless Steel
70740 Crank Handle Group, Short Stainless Steel
70755 Crank Handle Group, Long Stainless Steel
70695 Handle Holder Kit Stainless Steel
70700 Handle Holder Kit Stainless Steel ROLL TARP SYSTEMS
19 10930 Washer, Flat 3/8” Stainless Steel
20 10929 Washer, Lock 3/8” Stainless Steel
21 10928 Nut, 3/8” Stainless Steel Cable Retainer
22 10906 Bolt, hex, 3/8"-16 x 2-1/2", GR5, Zinc Pl
23 50833 Nut, hex Nylock, 3/8"-16 GR5, Zinc Pl

Electric Motor Kit and Parts
ITEM PART NO. DESCRIPTION 7
5 4
SRT-2 ELECTRIC MOTOR (STAINLESS STEEL KIT)
1
40890 SRT-2 Electric Motor Kit
50971 SRT-2 Electric Kit SS, Farm Box no Hoist 2
60111 SRT-2 Electric Kit SSl, Fertilizer Tender Trailer
1 50676 Motor, 12V with Cover (SRT-2) 8
90161 Motor Cover, Stainless Steel (motor not included)
2 10333 Motor Extension Shaft, 14” Powder Coated (SRT-2)
3 10774 Pivot Arm Top, 30” w/Motor Mount (Blk) 3
4 40941 Bolt, 5/16” x 3/4” SS (Requires 3 for Motor Mount) 9
5 10922 Washer, Lock 5/16” SS (Requires 3 for Motor Mount)
6 10124 Plug, Nylon
7 10925 Bolt, 5/16” x 1-3/4” Hex, Stainless Steel
8 10924 Nut, 5/16” Hex Rev-Lock, Stainless Steel
9 40989 Pivot Arm, Bottom Stainless Steel (60”) 6
10 10932 Bolt, 3/8” x 2-1/2” Hex, Stainless Steel 11 10
11 60451 Nut, 3/8” Hex Stainless Steel
