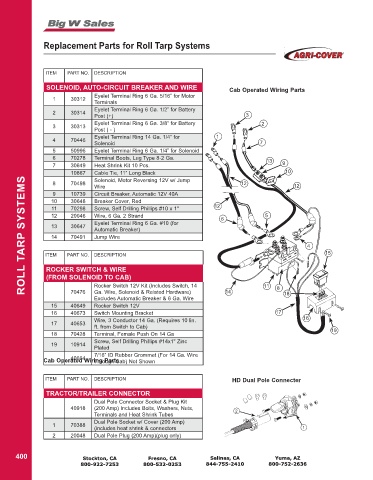

Replacement Parts for Roll Tarp Systems

ITEM PART NO. DESCRIPTION

SOLENOID, AUTO-CIRCUIT BREAKER AND WIRE Cab Operated Wiring Parts
Eyelet Terminal Ring 6 Ga. 5/16” for Motor
1 30312
Terminals
Eyelet Terminal Ring 6 Ga. 1/2” for Battery
2 30314
Post (+) 3
Eyelet Terminal Ring 6 Ga. 3/8” for Battery 2
3 30313
Post ( - )
Eyelet Terminal Ring 14 Ga. 1/4” for 1
4 70446
Solenoid 7
5 50996 Eyelet Terminal Ring 6 Ga. 1/4” for Solenoid
6 70278 Terminal Boots, Lug Type 8-2 Ga. 13
7 30649 Heat Shrink Kit 10 Pcs. 9
10867 Cable Tie, 11” Long Black 10
ROLL TARP SYSTEMS
Solenoid, Motor Reversing 12V w/ Jump
8 70498 12
Wire 12
9 10739 Circuit Breaker, Automatic 12V 40A
10 30648 Breaker Cover, Red
11 70298 Screw, Self Drilling Phillips #10 x 1" 12
12 20046 Wire, 6 Ga. 2 Strand 6 5
Eyelet Terminal Ring 6 Ga. #10 (for
13 30647
Automatic Breaker)
14 70491 Jump Wire
4
ITEM PART NO. DESCRIPTION 15

ROCKER SWITCH & WIRE
(FROM SOLENOID TO CAB)
Rocker Switch 12V Kit (Includes Switch, 14 11 8
70476 Ga. Wire, Solenoid & Related Hardware) 14 18
Excludes Automatic Breaker & 6 Ga. Wire
15 40649 Rocker Switch 12V
16 40673 Switch Mounting Bracket 17
Wire, 3 Conductor 14 Ga. (Requires 10 lin. 16
17 40653
ft. from Switch to Cab) 19
18 70428 Terminal, Female Push On 14 Ga
Screw, Self Drilling Phillips #14x1" Zinc
19 10914
Plated
7/16” ID Rubber Grommet (For 14 Ga. Wire
40664
Cab Operated Wiring Parts
Through Cab) Not Shown
ITEM PART NO. DESCRIPTION HD Dual Pole Connecter

TRACTOR/TRAILER CONNECTOR
Dual Pole Connector Socket & Plug Kit
40918 (200 Amp) Includes Bolts, Washers, Nuts,
Terminals and Heat Shrink Tubes 2
Dual Pole Socket w/ Cover (200 Amp)
1 70388
(includes heat shrink & connectors 1
2 20048 Dual Pole Plug (200 Amp)(plug only)
