P. 404

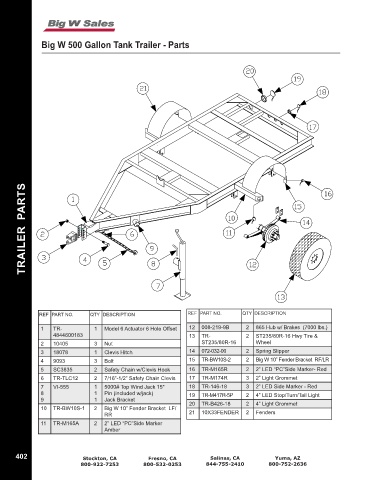

Big W 500 Gallon Tank Trailer - Parts
TRAILER PARTS
REF PART NO. QTY DESCRIPTION REF PART NO. QTY DESCRIPTION
1 TR- 1 Model 6 Actuator 6 Hole Offset 12 008-219-9B 2 865 Hub w/ Brakes (7000 lbs.)
4844600183 13 TR- 2 ST235/80R-16 Hwy Tire &
2 10405 3 Nut ST235/80R-16 Wheel
3 18078 1 Clevis Hitch 14 072-032-00 2 Spring Slipper
4 9093 3 Bolt 15 TR-BW10S-2 2 Big W 10” Fender Bracket RF/LR
5 SC3835 2 Safety Chain w/Clevis Hook 16 TR-M165R 2 2” LED “PC”Side Marker- Red
6 TR-TLC12 2 7/16”-1/2” Safety Chain Clevis 17 TR-M174R 3 2” Light Grommet
7 VI-555 1 5000# Top Wind Jack 15" 18 TR-146-18 3 2” LED Side Marker - Red
8 1 Pin (included w/jack) 19 TR-M417R-5P 2 4” LED Stop/Turn/Tail Light
9 1 Jack Bracket 20 TR-B426-18 2 4” Light Grommet
10 TR-BW10S-1 2 Big W 10” Fender Bracket LF/
RR 21 10X33FENDER 2 Fenders
11 TR-M165A 2 2” LED “PC”Side Marker
Amber
