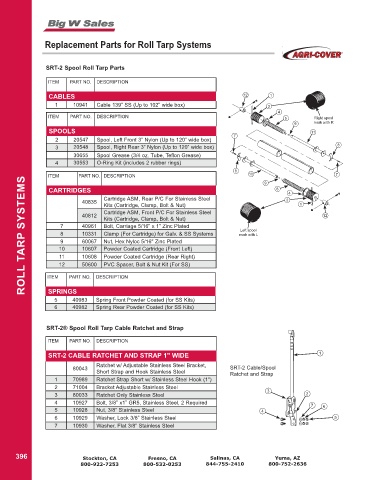

Replacement Parts for Roll Tarp Systems

SRT-2 Spool Roll Tarp Parts

ITEM PART NO. DESCRIPTION
CABLES 12 1
1 10941 Cable 139” SS (Up to 102” wide box) 3
4
ITEM PART NO. DESCRIPTION 5 Right spool
9 mark with R
SPOOLS 11
7
2 20547 Spool, Left Front 3” Nylon (Up to 120” wide box)
3 20548 Spool, Right Rear 3” Nylon (Up to 120” wide box) 8
30655 Spool Grease (3/4 oz. Tube, Teflon Grease)
4 30553 O-Ring Kit (includes 2 rubber rings)
8
ITEM PART NO. DESCRIPTION 10 7
ROLL TARP SYSTEMS
9
CARTRIDGES 6 4
Cartridge ASM, Rear P/C For Stainless Steel
40835 2
Kits (Cartridge, Clamp, Bolt & Nut) 1
Cartridge ASM, Front P/C For Stainless Steel
40812 12
Kits (Cartridge, Clamp, Bolt & Nut)
7 40961 Bolt, Carriage 5/16” x 1” Zinc Plated
Left spool
8 10331 Clamp (For Cartridge) for Galv. & SS Systems mark with L
9 60067 Nut, Hex Nyloc 5/16" Zinc Plated
10 10607 Powder Coated Cartridge (Front Left)
11 10608 Powder Coated Cartridge (Rear Right)
12 50600 PVC Spacer, Bolt & Nut Kit (For SS)

ITEM PART NO. DESCRIPTION
SPRINGS
5 40983 Spring Front Powder Coated (for SS Kits)
6 40982 Spring Rear Powder Coated (for SS Kits)

SRT-2® Spool Roll Tarp Cable Ratchet and Strap

ITEM PART NO. DESCRIPTION

SRT-2 CABLE RATCHET AND STRAP 1" WIDE 1
Ratchet w/ Adjustable Stainless Steel Bracket,
80043 SRT-2 Cable/Spool
Short Strap and Hook Stainless Steel Ratchet and Strap
1 70989 Ratchet Strap Short w/ Stainless Steel Hook (1")
2 71004 Bracket Adjustable Stainless Steel
3 80033 Ratchet Only Stainless Steel 3 2
4 10927 Bolt, 3/8” x1” GR5, Stainless Steel, 2 Required 7
5 10928 Nut, 3/8” Stainless Steel 4 6
6 10929 Washer, Lock 3/8” Stainless Steel 5
7 10930 Washer, Flat 3/8” Stainless Steel
