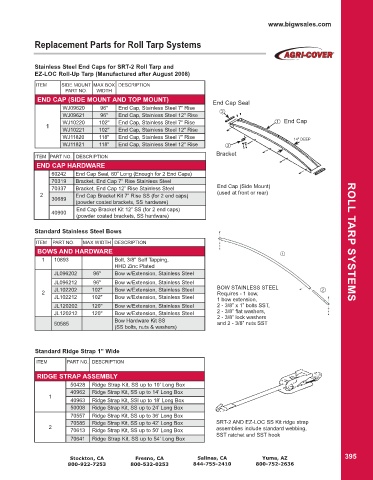

Replacement Parts for Roll Tarp Systems

Stainless Steel End Caps for SRT-2 Roll Tarp and
EZ-LOC Roll-Up Tarp (Manufactured after August 2008)
ITEM SIDE MOUNT MAX BOX DESCRIPTION
PART NO. WIDTH
END CAP (SIDE MOUNT AND TOP MOUNT) End Cap Seal
WJ09620 96" End Cap, Stainless Steel 7" Rise
WJ09621 96" End Cap, Stainless Steel 12" Rise 2
WJ10220 102" End Cap, Stainless Steel 7" Rise 1 End Cap
1
WJ10221 102" End Cap, Stainless Steel 12" Rise
WJ11820 118" End Cap, Stainless Steel 7" Rise 14” DEEP
WJ11821 118" End Cap, Stainless Steel 12" Rise 3
Bracket
ITEM PART NO. DESCRIPTION
END CAP HARDWARE
60242 End Cap Seal, 60” Long (Enough for 2 End Caps)
70319 Bracket, End Cap 7” Rise Stainless Steel
70337 Bracket, End Cap 12” Rise Stainless Steel End Cap (Side Mount)
2 End Cap Bracket Kit 7” Rise SS (for 2 end caps) (used at front or rear)
30689
(powder coated brackets, SS hardware)
End Cap Bracket Kit 12” SS (for 2 end caps)
40900
(powder coated brackets, SS hardware)

Standard Stainless Steel Bows
ITEM PART NO. MAX WIDTH DESCRIPTION ROLL TARP SYSTEMS
BOWS AND HARDWARE 1
1 10893 Bolt, 3/8" Self Tapping,
HHD Zinc Plated
JL096202 96" Bow w/Extension, Stainless Steel
JL096212 96" Bow w/Extension, Stainless Steel
JL102202 102" Bow w/Extension, Stainless Steel BOW STAINLESS STEEL 2
2 Requires - 1 bow,
JL102212 102" Bow w/Extension, Stainless Steel 1 bow extension,
JL120202 120" Bow w/Extension, Stainless Steel 2 - 3/8” x 1” bolts SST,
JL120212 120" Bow w/Extension, Stainless Steel 2 - 3/8” flat washers,
2 - 3/8” lock washers
Bow Hardware Kit SS
50585 and 2 - 3/8” nuts SST
(SS bolts, nuts & washers)

Standard Ridge Strap 1" Wide

ITEM PART NO. DESCRIPTION
RIDGE STRAP ASSEMBLY
50428 Ridge Strap Kit, SS up to 10’ Long Box
40962 Ridge Strap Kit, SS up to 14’ Long Box
1
40963 Ridge Strap Kit, SSl up to 18’ Long Box
50008 Ridge Strap Kit, SS up to 24’ Long Box
70557 Ridge Strap Kit, SS up to 36’ Long Box
70585 Ridge Strap Kit, SS up to 42’ Long Box SRT-2 AND EZ-LOC SS Kit ridge strap
2 assemblies include standard webbing,
70613 Ridge Strap Kit, SS up to 50’ Long Box
70641 Ridge Strap Kit, SS up to 54’ Long Box SST ratchet and SST hook
