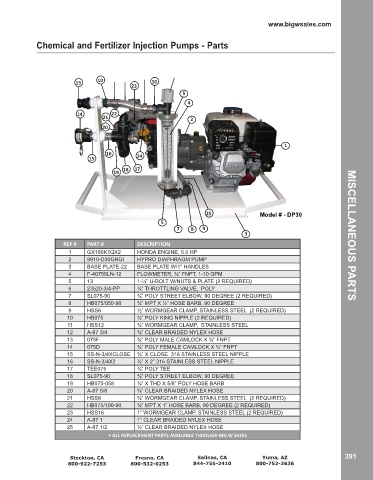

Page 393 - Catalog

www.bigwsales.com

Chemical and Fertilizer Injection Pumps - Parts

13 10 10
23
5
4
14 22
21 2
20

1
16 24
15

19 18 17

25 Model # - DP30
5
7 8 9
3 MISCELLANEOUS PARTS
REF # PART # DESCRIPTION
1 GX160K1QX2 HONDA ENGINE, 5.5 HP
2 9910-D30GRGI HYPRO DIAPHRAGM PUMP
3 BASE PLATE-22 BASE PLATE W/1" HANDLES
4 F-40750LN-12 FLOWMETER, ¾” FNPT, 1-10 GPM
5 13 1-¼” U-BOLT W/NUTS & PLATE (2 REQUIRED)
6 23520-3/4-PP ¾” THROTTLING VALVE, POLY
7 SL075-90 ¾” POLY STREET ELBOW, 90 DEGREE (2 REQUIRED)
8 HB075/050-90 ¾” MPT X ½” HOSE BARB, 90 DEGREE
9 HSS6 ½” WORMGEAR CLAMP, STAINLESS STEEL (2 REQUIRED)
10 HB075 ¾” POLY KING NIPPLE (2 REQUIRED)
11 HSS12 ¾” WORMGEAR CLAMP, STAINLESS STEEL
12 A-87 3/4 ¾” CLEAR BRAIDED NYLEX HOSE
13 075F ¾” POLY MALE CAMLOCK X ¾” FNPT
14 075D ¾” POLY FEMALE CAMLOCK X ¾” FNPT
15 SS-N-3/4XCLOSE ¾” X CLOSE 316 STAINLESS STEEL NIPPLE
16 SS-N-3/4X2 ¾” X 2” 316 STAINLESS STEEL NIPPLE
17 TEE075 ¾” POLY TEE
18 SL075-90 ¾” POLY STREET ELBOW, 90 DEGREE
19 HB075-058 ¾” X THD X 5/8” POLY HOSE BARB
20 A-87 5/8 5⁄8” CLEAR BRAIDED NYLEX HOSE
21 HSS8 5⁄8” WORMGEAR CLAMP, STAINLESS STEEL (2 REQUIRED)
22 HB075/100-90 ¾” MPT X 1” HOSE BARB, 90 DEGREE (2 REQUIRED)
23 HSS16 1” WORMGEAR CLAMP, STAINLESS STEEL (2 REQUIRED)
24 A-87 1 1” CLEAR BRAIDED NYLEX HOSE
25 A-87 1/2 ½” CLEAR BRAIDED NYLEX HOSE
• ALL REPLACEMENT PARTS AVAILABLE THROUGH BIG W SALES
