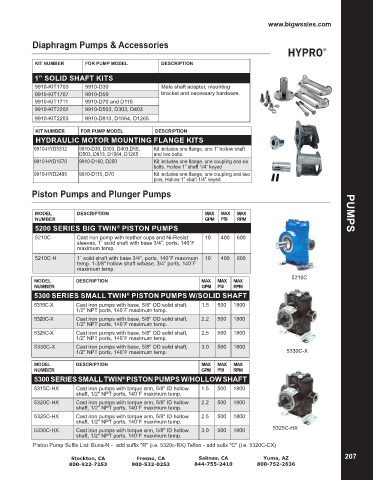

Page 209 - Catalog

www.bigwsales.com

Diaphragm Pumps & Accessories

KIT NUMBER FOR PUMP MODEL DESCRIPTION
1” SOLID SHAFT KITS

9910-KIT1703 9910-D30 Male shaft adapter, mounting
9910-KIT1707 9910-D50 bracket and necessary hardware.
9910-KIT1711 9910-D70 and D115
9910-KIT2202 9910-D503, D303, D403
9910-KIT2203 9910-D813, D1064, D1265

KIT NUMBER FOR PUMP MODEL DESCRIPTION
HYDRAULIC MOTOR MOUNTING FLANGE KITS

9910-HYD5312 9910-D30, D303, D403,D50, Kit includes one flange, one 1” hollow shaft
D503, D813, D1064, D1265 and two bolts.
9910-HYD1570 9910-D160, D250 Kit includes one flange, one coupling and six
bolts. Hollow 1” shaft 1/4” keyed
9910-HYD2495 9910-D115, D70 Kit includes one flange, one coupling and two
pins. Hollow 1” shaft 1/4” keyed

Piston Pumps and Plunger Pumps

MODEL DESCRIPTION MAX MAX MAX PUMPS
NUMBER GPM PSI RPM
5200 SERIES BIG TWIN PISTON PUMPS
®
5210C Cast iron pump with leather cups and Ni-Resist 10 400 600
sleeves, 1˚ solid shaft with base 3/4”, ports, 140˚F
maximum temp.
5210C-H 1˚ solid shaft with base 3/4”, ports, 140˚F maximum 10 400 600
temp. 1-3/8" hollow shaft w/base, 3/4” ports, 140˚F
maximum temp.
5210C
MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
5300 SERIES SMALL TWIN PISTON PUMPS W/SOLID SHAFT
®
5315C-X Cast iron pumps with base, 5/8" OD solid shaft, 1.5 500 1800
1/2" NPT ports, 140˚F maximum temp.
5320C-X Cast iron pumps with base, 5/8" OD solid shaft, 2.2 500 1800
1/2" NPT ports, 140˚F maximum temp.
5325C-X Cast iron pumps with base, 5/8" OD solid shaft, 2.5 500 1800
1/2" NPT ports, 140˚F maximum temp.
5330C-X Cast iron pumps with base, 5/8" OD solid shaft, 3.0 500 1800
1/2" NPT ports, 140˚F maximum temp. 5330C-X
MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
5300 SERIES SMALL TWIN PISTON PUMPS W/HOLLOW SHAFT
®
5315C-HX Cast iron pumps with torque arm, 5/8" ID hollow 1.5 500 1800
shaft, 1/2" NPT ports, 140˚F maximum temp.
5320C-HX Cast iron pumps with torque arm, 5/8" ID hollow 2.2 500 1800
shaft, 1/2" NPT ports, 140˚F maximum temp.
5325C-HX Cast iron pumps with torque arm, 5/8" ID hollow 2.5 500 1800
shaft, 1/2" NPT ports, 140˚F maximum temp.
5330C-HX Cast iron pumps with torque arm, 5/8" ID hollow 3.0 500 1800 5325C-HX
shaft, 1/2" NPT ports, 140˚F maximum temp.
Piston Pump Suffix List: Buna-N - add suffix "R" (i.e. 5320c-RX) Teflon - add sufix "C" (i.e. 5320C-CX)
