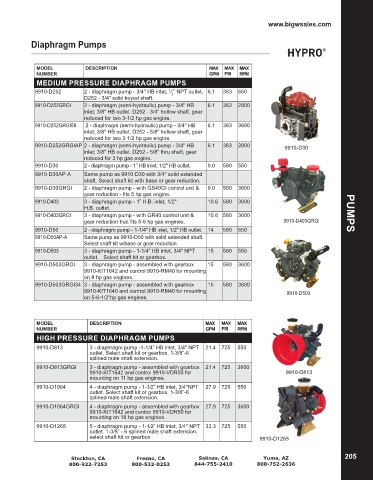

Page 207 - Catalog

www.bigwsales.com

Diaphragm Pumps

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
MEDIUM PRESSURE DIAPHRAGM PUMPS
9910-D252 2 - diaphragm pump - 3/4" HB inlet, ⁄ ” NPT outlet. 6.1 363 650
1
2
D252 - 3/4" solid keyed shaft.
9910-D252GRGI 2 - diaphragm (semi-hydraulic) pump - 3/4" HB 6.1 363 2800
inlet; 3/8" HB outlet. D252 - 3/4" hollow shaft, gear
reduced for two 3-1/2 hp gas engine.
9910-D252GRGI58 2 - diaphragm (semi-hydraulic) pump - 3/4" HB 6.1 363 3600
inlet; 3/8" HB outlet. D252 - 5/8" hollow shaft, gear
reduced for two 3-1/2 hp gas engine.
9910-D252GRGIAP 2 - diaphragm (semi-hydraulic) pump - 3/4" HB 6.1 363 2800 9910-D30
inlet; 3/8" HB outlet. D252 - 5/8" thru shaft, gear
reduced for 3 hp gas engine.
9910-D30 2 - diaphragm pump - 1” HB inlet, 1/2" HB outlet. 9.0 580 550
9910-D30AP-A Same pump as 9910-D30 with 3/4" solid extended
shaft. Select shaft kit with base or gear reduction.
9910-D30GRGI 2 - diaphragm pump - with GS40GI control unit & 9.0 580 3600
gear reduction - fits 5 hp gas engine.
9910-D403 3 - diaphragm pump - 1” H.B. inlet, 1/2" 10.6 580 3600
H.B. outlet.
9910-D403GRGI 3 - diaphragm pump - with GR40 control unit & 10.6 580 3600 PUMPS
gear reduction that fits 5-6 hp gas engines. 9910-D403GRGI
9910-D50 2 - diaphragm pump - 1-1/4" HB inlet, 1/2" HB outlet. 14 580 550
9910-D50AP-A Same pump as 9910-D50 with solid extended shaft.
Select shaft kit w/base or gear reduction.
9910-D503 3 - diaphragm pump - 1-1/4" HB inlet, 3/4" NPT 15 580 550
outlet. Select shaft kit or gearbox.
9910-D503GRGI 3 - diaphragm pump - assembled with gearbox 15 580 3600
9910-KIT1642 and control 9910-RM40 for mounting
on 8 hp gas engines.
9910-D503GRGI34 3 - diaphragm pump - assembled with gearbox 15 580 3600
9910-KIT1640 and control 9910-RM40 for mounting 9910-D503
on 5-6-1/2"hp gas engines.

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
HIGH PRESSURE DIAPHRAGM PUMPS
9910-D813 3 - diaphragm pump -1-1/4” HB inlet, 3/4" NPT 21.4 725 550
outlet. Select shaft kit or gearbox. 1-3/8”-6
splined male shaft extension.
9910-D813GRGI 3 - diaphragm pump - assembled with gearbox 21.4 725 3600
9910-KIT1642 and control 9910-VDR50 for 9910-D813
mounting on 11 hp gas engines.
9910-D1064 4 - diaphragm pump - 1-1⁄2” HB inlet, 3/4"NPT 27.9 725 550
outlet. Select shaft kit or gearbox. 1-3/8”-6
splined male shaft extension.
9910-D1064GRGI 4 - diaphragm pump - assembled with gearbox 27.9 725 3600
9910-KIT1642 and control 9910-VDR50 for
mounting on 18 hp gas engines.
9910-D1265 5 - diaphragm pump - 1-1⁄2” HB inlet, 3/4" NPT 33.3 725 550
outlet. 1-3/8” - 6 splined male shaft extension,
select shaft kit or gearbox 9910-D1265
