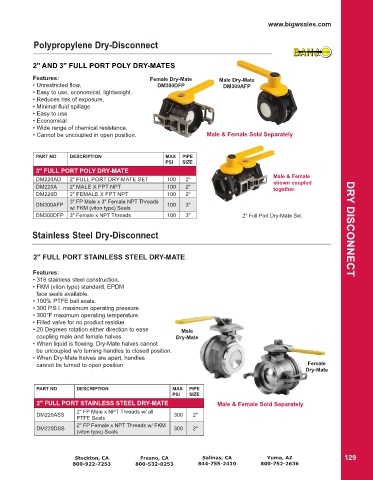

Page 131 - Catalog

www.bigwsales.com

Polypropylene Dry-Disconnect

2" AND 3" FULL PORT POLY DRY-MATES

Features: Female Dry-Mate Male Dry-Mate
• Unrestricted flow. DM300DFP DM300AFP
• Easy to use, economical, lightweight.
• Reduces risk of exposure.
• Minimal fluid spillage
• Easy to use
• Economical
• Wide range of chemical resistance.
• Cannot be uncoupled in open position. Male & Female Sold Separately

PART NO DESCRIPTION MAX PIPE
PSI SIZE
3" FULL PORT POLY DRY-MATE
DM220AD 2" FULL PORT DRY-MATE SET 100 2" Male & Female
shown coupled
DM220A 2" MALE X FPT NPT 100 2" together.
DM220D 2" FEMALE X FPT NPT 100 2"
3" FP Male x 3" Female NPT Threads
DM300AFP 100 3"
w/ FKM (viton type) Seals
DM300DFP 3" Female x NPT Threads 100 3" 2" Full Port Dry-Mate Set

Stainless Steel Dry-Disconnect DRY DISCONNECT

2" FULL PORT STAINLESS STEEL DRY-MATE

Features:
• 316 stainless steel construction.
• FKM (viton type) standard, EPDM
face seals available.
• 100% PTFE ball seats.
• 300 P.S.I. maximum operating pressure.
• 300°F maximum operating temperature.
• Filled valve for no product residue.
• 20 Degrees rotation either direction to ease Male
coupling male and female halves. Dry-Mate
• When liquid is flowing, Dry-Mate halves cannot
be uncoupled w/o turning handles to closed position.
• When Dry-Mate halves are apart, handles
cannot be turned to open position Female
Dry-Mate

PART NO DESCRIPTION MAX PIPE
PSI SIZE
2" FULL PORT STAINLESS STEEL DRY-MATE Male & Female Sold Separately
2" FP Male x NPT Threads w/ all
DM220ASS 300 2"
PTFE Seals
2" FP Female x NPT Threads w/ FKM
DM220DSS 300 2"
(viton type) Seals
