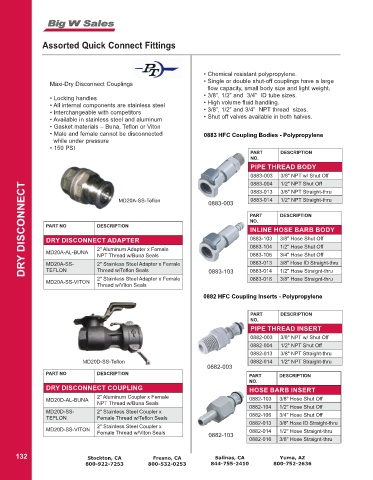

Page 134 - Catalog

Assorted Quick Connect Fittings

• Chemical resistant polypropylene.
Maxi-Dry Disconnect Couplings • Single or double shut-off couplings have a large
flow capacity, small body size and light weight.
• Locking handles • 3/8”, 1/2” and 3/4” ID tube sizes.
• All internal components are stainless steel • High volume fluid handling.
• Interchangeable with competitors • 3/8”, 1/2” and 3/4” NPT thread sizes.
• Available in stainless steel and aluminum • Shut off valves available in both halves.
• Gasket materials – Buna, Teflon or Viton
• Male and female cannot be disconnected 0883 HFC Coupling Bodies - Polypropylene
while under pressure
• 150 PSI
PART DESCRIPTION
NO.
PIPE THREAD BODY
0883-003 3/8" NPT w/ Shut Off
1/2" NPT Shut Off
0883-004
DRY DISCONNECT PART NO DESCRIPTION 0883-003 PART DESCRIPTION
3/8" NPT Straight-thru
0883-013
1/2" NPT Straight-thru
0883-014
MD20A-SS-Teflon
NO.
INLINE HOSE BARB BODY
3/8" Hose Shut Off
0883-103
DRY DISCONNECT ADAPTER
1/2" Hose Shut Off
0883-104
2" Aluminum Adapter x Female
MD20A-AL-BUNA
0883-106
3/4" Hose Shut Off
NPT Thread w/Buna Seals
MD20A-SS-
Thread w/Teflon Seals
TEFLON
1/2" Hose Straignt-thru
0883-014
2" Stainless Steel Adapter x Female
0883-016
3/8" Hose Straignt-thru
MD20A-SS-VITON 2" Stainless Steel Adapter x Female 0883-103 0883-013 3/8" Hose ID Straight-thru
Thread w/Viton Seals
0882 HFC Coupling Inserts - Polypropylene
PART DESCRIPTION
NO.
PIPE THREAD INSERT
0882-003 3/8" NPT w/ Shut Off
0882-004 1/2" NPT Shut Off
0882-013 3/8" NPT Straight-thru
MD20D-SS-Teflon 0882-014 1/2" NPT Straight-thru
0882-003
PART NO DESCRIPTION PART DESCRIPTION
NO.
DRY DISCONNECT COUPLING HOSE BARB INSERT
2" Aluminum Coupler x Female
MD20D-AL-BUNA 0882-103 3/8" Hose Shut Off
NPT Thread w/Buna Seals 0882-104 1/2" Hose Shut Off
MD20D-SS- 2" Stainless Steel Coupler x 0882-106 3/4" Hose Shut Off
TEFLON Female Thread w/Teflon Seals
2" Stainless Steel Coupler x 0882-013 3/8" Hose ID Straight-thru
MD20D-SS-VITON
Female Thread w/Viton Seals 0882-103 0882-014 1/2" Hose Straignt-thru
0882-016 3/8" Hose Straignt-thru
