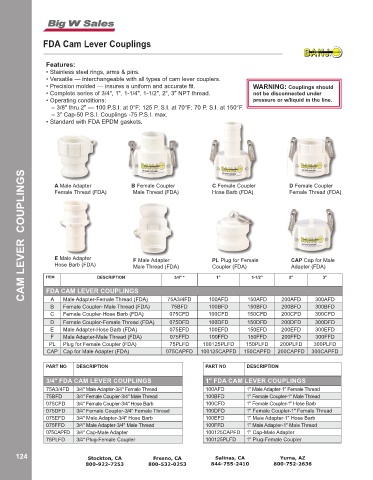

FDA Cam Lever Couplings

Features:
• Stainless steel rings, arms & pins.
• Versatile — interchangeable with all types of cam lever couplers.
• Precision molded — insures a uniform and accurate fit. WARNING: Couplings should
• Complete series of 3/4", 1", 1-1/4", 1-1/2", 2", 3" NPT thread. not be disconnected under
• Operating conditions: pressure or w/liquid in the line.
– 3/8" thru 2" — 100 P.S.I. at 0°F; 125 P. S.I. at 70°F; 70 P. S.I. at 150°F.
– 3" Cap-50 P.S.I. Couplings -75 P.S.I. max.
• Standard with FDA EPDM gaskets.

CAM LEVER COUPLINGS
A Male Adapter B Female Coupler C Female Coupler D Female Coupler
Female Thread (FDA) Male Thread (FDA) Hose Barb (FDA) Female Thread (FDA)

E Male Adapter F Male Adapter PL Plug for Female CAP Cap for Male
Hose Barb (FDA) Male Thread (FDA) Coupler (FDA) Adapter (FDA)

ITEM DESCRIPTION 3/4" * 1" 1-1/2" 2" 3"
FDA CAM LEVER COUPLINGS
A Male Adapter-Female Thread (FDA) 75A3/4FD 100AFD 150AFD 200AFD 300AFD
B Female Coupler- Male Thread (FDA) 75BFD 100BFD 150BFD 200BFD 300BFD
C Female Coupler-Hose Barb (FDA) 075CFD 100CFD 150CFD 200CFD 300CFD
D Female Coupler-Female Thread (FDA) 075DFD 100DFD 150DFD 200DFD 300DFD
E Male Adapter-Hose Barb (FDA) 075EFD 100EFD 150EFD 200EFD 300EFD
F Male Adapter-Male Thread (FDA) 075FFD 100FFD 150FFD 200FFD 300FFD
PL Plug for Female Coupler (FDA) 75PLFD 100125PLFD 150PLFD 200PLFD 300PLFD
CAP Cap for Male Adapter (FDA) 075CAPFD 100125CAPFD 150CAPFD 200CAPFD 300CAPFD

PART NO DESCRIPTION PART NO DESCRIPTION
3/4" FDA CAM LEVER COUPLINGS 1" FDA CAM LEVER COUPLINGS
75A3/4FD 3/4" Male Adapter-3/4" Female Thread 100AFD 1" Male Adapter-1" Female Thread
75BFD 3/4" Female Coupler-3/4" Male Thread 100BFD 1" Female Coupler-1" Male Thread
075CFD 3/4" Female Coupler-3/4" Hose Barb 100CFD 1" Female Coupler-1" Hose Barb
075DFD 3/4" Female Coupler-3/4" Female Thread 100DFD 1" Female Coupler-1" Female Thread
075EFD 3/4" Male Adapter-3/4" Hose Barb 100EFD 1" Male Adapter-1" Hose Barb
075FFD 3/4" Male Adapter-3/4" Male Thread 100FFD 1" Male Adapter-1" Male Thread
075CAPFD 3/4" Cap-Male Adapter 100125CAPFD 1" Cap-Male Adapter
75PLFD 3/4" Plug-Female Coupler 100125PLFD 1" Plug-Female Coupler
