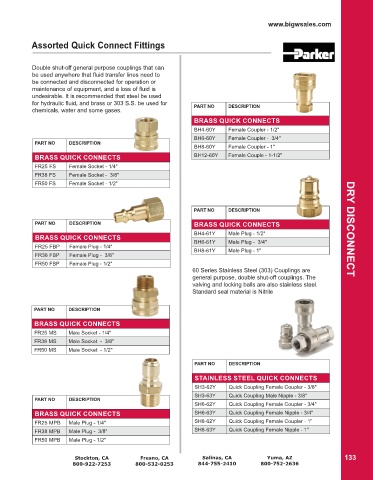

Assorted Quick Connect Fittings

Double shut-off general purpose couplings that can
be used anywhere that fluid transfer lines need to
be connected and disconnected for operation or
maintenance of equipment, and a loss of fluid is
undesirable. It is recommended that steel be used
for hydraulic fluid, and brass or 303 S.S. be used for PART NO DESCRIPTION
chemicals, water and some gases.
BRASS QUICK CONNECTS

BH4-60Y Female Coupler - 1/2"
BH6-60Y Female Coupler - 3/4"
PART NO DESCRIPTION
BH8-60Y Female Coupler - 1"
BRASS QUICK CONNECTS BH12-60Y Female Couple - 1-1/2"
FR25 FS Female Socket - 1/4"
FR38 FS Female Socket - 3/8"
FR50 FS Female Socket - 1/2"

PART NO DESCRIPTION
PART NO DESCRIPTION BRASS QUICK CONNECTS
BH4-61Y Male Plug - 1/2" DRY DISCONNECT
BRASS QUICK CONNECTS BH6-61Y Male Plug - 3/4"
FR25 FBP Female Plug - 1/4" BH8-61Y Male Plug - 1"
FR38 FBP Female Plug - 3/8"
FR50 FBP Female Plug - 1/2"
60 Series Stainless Steel (303) Couplings are
general purpose, double shut-off couplings. The
valving and locking balls are also stainless steel.
Standard seal material is Nitrile

PART NO DESCRIPTION
BRASS QUICK CONNECTS
FR25 MS Male Socket - 1/4"
FR38 MS Male Socket - 3/8"
FR50 MS Male Socket - 1/2"

PART NO DESCRIPTION

STAINLESS STEEL QUICK CONNECTS
SH3-62Y Quick Coupling Female Coupler - 3/8"
SH3-63Y Quick Coupling Male Nipple - 3/8"
PART NO DESCRIPTION
SH6-62Y Quick Coupling Female Coupler - 3/4"
BRASS QUICK CONNECTS SH6-63Y Quick Coupling Female Nipple - 3/4"
FR25 MPB Male Plug - 1/4" SH8-62Y Quick Coupling Female Coupler - 1"
FR38 MPB Male Plug - 3/8" SH8-63Y Quick Coupling Female Nipple - 1"
FR50 MPB Male Plug - 1/2"
