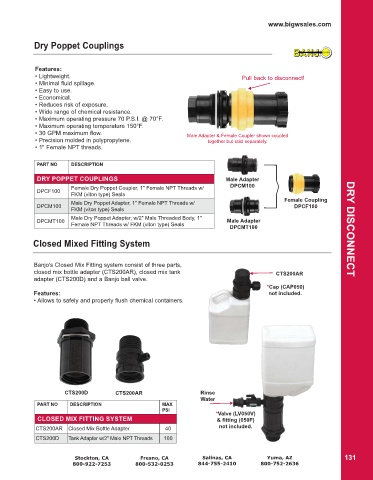

Dry Poppet Couplings

Features:
• Lightweight. Pull back to disconnect!
• Minimal fluid spillage.
• Easy to use.
• Economical.
• Reduces risk of exposure.
• Wide range of chemical resistance.
• Maximum operating pressure 70 P.S.I. @ 70°F.
• Maximum operating temperature 150°F.
• 30 GPM maximum flow. Male Adapter & Female Coupler shown coupled
• Precision molded in polypropylene. together but sold separately.
• 1" Female NPT threads.

PART NO DESCRIPTION

DRY POPPET COUPLINGS Male Adapter
Female Dry Poppet Coupler, 1" Female NPT Threads w/ DPCM100
DPCF100
FKM (viton type) Seals
Male Dry Poppet Adapter, 1" Female NPT Threads w/ Female Coupling
DPCM100 DPCF100
FKM (viton type) Seals
Male Dry Poppet Adapter, w/2" Male Threaded Body, 1"
DPCMT100 Male Adapter
Female NPT Threads w/ FKM (viton type) Seals DPCMT100 DRY DISCONNECT

Closed Mixed Fitting System

Banjo's Closed Mix Fitting system consist of three parts,
closed mix bottle adapter (CTS200AR), closed mix tank CTS200AR
adapter (CTS200D) and a Banjo ball valve.
*Cap (CAP050)
Features: not included.
• Allows to safely and properly flush chemical containers.

CTS200D CTS200AR Rinse
Water
PART NO DESCRIPTION MAX
PSI *Valve (LV050V)
CLOSED MIX FITTING SYSTEM & fitting (050F)

CTS200AR Closed Mix Bottle Adapter 40 not included.
CTS200D Tank Adapter w/2" Male NPT Threads 100
