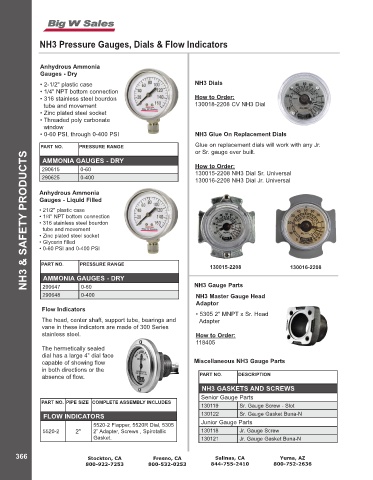

NH3 Pressure Gauges, Dials & Flow Indicators

Anhydrous Ammonia
Gauges - Dry
• 2-1/2" plastic case NH3 Dials
• 1/4" NPT bottom connection
• 316 stainless steel bourdon How to Order:
tube and movement 130018-2208 CV NH3 Dial
• Zinc plated steel socket
• Threaded poly carbonate
window
• 0-60 PSI, through 0-400 PSI NH3 Glue On Replacement Dials
PART NO. PRESSURE RANGE Glue on replacement dials will work with any Jr.
or Sr. gauge ever built.
NH3 & SAFETY PRODUCTS
AMMONIA GAUGES - DRY
290615 0-60 How to Order:
130015-2208 NH3 Dial Sr. Universal
290625 0-400 130016-2208 NH3 Dial Jr. Universal

Anhydrous Ammonia
Gauges - Liquid Filled

• 21/2" plastic case
• 1/4" NPT bottom connection
• 316 stainless steel bourdon
tube and movement
• Zinc plated steel socket
• Glycerin filled
• 0-60 PSI and 0-400 PSI

PART NO. PRESSURE RANGE 130015-2208 130016-2208

AMMONIA GAUGES - DRY
290647 0-60 NH3 Gauge Parts
290648 0-400 NH3 Master Gauge Head
Adaptor
Flow Indicators
• 5305 2" MNPT x Sr. Head
The head, center shaft, support tube, bearings and Adapter
vane in these indicators are made of 300 Series
stainless steel. How to Order:
118405
The hermetically sealed
dial has a large 4” dial face
capable of showing flow Miscellaneous NH3 Gauge Parts
in both directions or the
absence of flow. PART NO. DESCRIPTION
NH3 GASKETS AND SCREWS
Senior Gauge Parts
PART NO. PIPE SIZE COMPLETE ASSEMBLY INCLUDES
130119 Sr. Gauge Screw - Slot
FLOW INDICATORS 130122 Sr. Gauge Gasket Buna-N
5520-2 Flapper, 5520R Dial, 5305 Junior Gauge Parts
5520-2 2" 2” Adapter, Screws , Spirotallic 130118 Jr. Gauge Screw
Gasket. 130121 Jr. Gauge Gasket Buna-N
