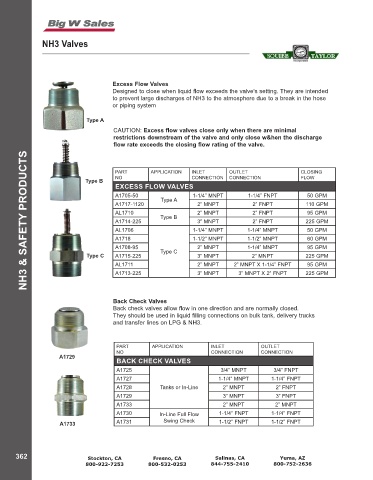

NH3 Valves

Excess Flow Valves
Designed to close when liquid flow exceeds the valve's setting. They are intended
to prevent large discharges of NH3 to the atmosphere due to a break in the hose
or piping system

Type A

CAUTION: Excess flow valves close only when there are minimal
restrictions downstream of the valve and only close w&hen the discharge
flow rate exceeds the closing flow rating of the valve.
NH3 & SAFETY PRODUCTS

PART APPLICATION INLET OUTLET CLOSING
NO CONNECTION CONNECTION FLOW
Type B
EXCESS FLOW VALVES
A1705-50 Type A 1-1/4” MNPT 1-1/4” FNPT 50 GPM
A1717-1120 2” MNPT 2” FNPT 110 GPM
AL1710 Type B 2” MNPT 2” FNPT 95 GPM
A1714-225 3" MNPT 2” FNPT 225 GPM
AL1706 1-1/4” MNPT 1-1/4” MNPT 50 GPM
A1718 1-1/2” MNPT 1-1/2” MNPT 60 GPM
A1708-95 2” MNPT 1-1/4” MNPT 95 GPM
Type C A1715-225 Type C 3” MNPT 2” MNPT 225 GPM
AL1711 2” MNPT 2” MNPT X 1-1/4” FNPT 95 GPM
A1713-225 3” MNPT 3” MNPT X 2” FNPT 225 GPM

Back Check Valves
Back check valves allow flow in one direction and are normally closed.
They should be used in liquid filling connections on bulk tank, delivery trucks
and transfer lines on LPG & NH3.

PART APPLICATION INLET OUTLET
NO CONNECTION CONNECTION
A1729
BACK CHECK VALVES
A1725 3/4” MNPT 3/4” FNPT
A1727 1-1/4” MNPT 1-1/4” FNPT
A1728 Tanks or In-Line 2” MNPT 2” FNPT
A1729 3” MNPT 3” FNPT
A1733 2” MNPT 2” MNPT
A1730 In-Line Full Flow 1-1/4” FNPT 1-1/4” FNPT

A1733 A1731 Swing Check 1-1/2” FNPT 1-1/2” FNPT
