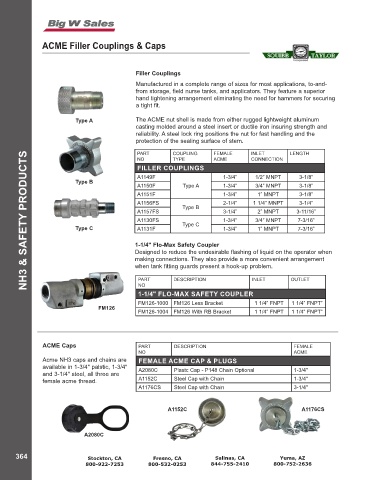

ACME Filler Couplings & Caps

Filler Couplings
Manufactured in a complete range of sizes for most applications, to-and-
from storage, field nurse tanks, and applicators. They feature a superior
hand tightening arrangement eliminating the need for hammers for securing
a tight fit.

Type A The ACME nut shell is made from either rugged lightweight aluminum
casting molded around a steel insert or ductile iron insuring strength and
reliability. A steel lock ring positions the nut for fast handling and the
protection of the sealing surface of stem.

PART COUPLING FEMALE INLET LENGTH
NH3 & SAFETY PRODUCTS
NO TYPE ACME CONNECTION
FILLER COUPLINGS
A1149F 1-3/4” 1/2” MNPT 3-1/8”
Type B
A1150F Type A 1-3/4” 3/4” MNPT 3-1/8”
A1151F 1-3/4” 1” MNPT 3-1/8”
A1156FS Type B 2-1/4” 1 1/4” MNPT 3-1/4”
A1157FS 3-1/4” 2” MNPT 3-11/16”
A1130FS 1-3/4” 3/4” MNPT 7-3/16”
Type C A1131F Type C 1-3/4” 1” MNPT 7-3/16”

1-1/4" Flo-Max Safety Coupler
Designed to reduce the undesirable flashing of liquid on the operator when
making connections. They also provide a more convenient arrangement
when tank fitting guards present a hook-up problem.

PART DESCRIPTION INLET OUTLET
NO
1-1/4" FLO-MAX SAFETY COUPLER
FM126-1000 FM126 Less Bracket 1 1/4” FNPT 1 1/4” FNPT”
FM126
FM126-1004 FM126 With RB Bracket 1 1/4” FNPT 1 1/4” FNPT”

ACME Caps PART DESCRIPTION FEMALE
NO ACME
Acme NH3 caps and chains are FEMALE ACME CAP & PLUGS
available in 1-3/4" palstic, 1-3/4" A2080C Plastc Cap - P148 Chain Optional 1-3/4"
and 3-1/4" steel, all three are
female acme thread. A1152C Steel Cap with Chain 1-3/4"
A1176CS Steel Cap with Chain 3-1/4"

A1152C A1176CS

A2080C
