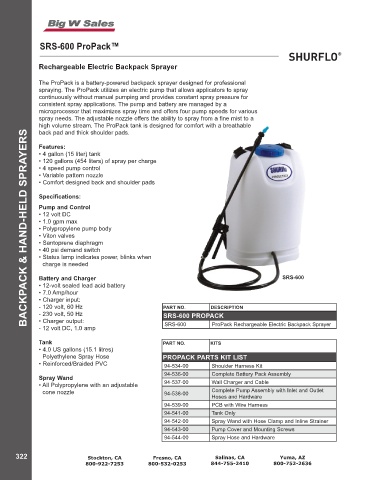

Page 324 - Catalog

SRS-600 ProPack™

Rechargeable Electric Backpack Sprayer

The ProPack is a battery-powered backpack sprayer designed for professional
spraying. The ProPack utilizes an electric pump that allows applicators to spray
continuously without manual pumping and provides constant spray pressure for
consistent spray applications. The pump and battery are managed by a
microprocessor that maximizes spray time and offers four pump speeds for various
spray needs. The adjustable nozzle offers the ability to spray from a fine mist to a
high volume stream. The ProPack tank is designed for comfort with a breathable
back pad and thick shoulder pads.
BACKPACK & HAND-HELD SPRAYERS
Features:
• 4 gallon (15 liter) tank
• 120 gallons (454 liters) of spray per charge
• 4 speed pump control
• Variable pattern nozzle
• Comfort designed back and shoulder pads

Specifications:
Pump and Control
• 12 volt DC
• 1.0 gpm max
• Polypropylene pump body
• Viton valves
• Santoprene diaphragm
• 40 psi demand switch
• Status lamp indicates power, blinks when
charge is needed

Battery and Charger SRS-600
• 12-volt sealed lead acid battery
• 7.0 Amp/hour
• Charger input:
- 120 volt, 60 Hz PART NO. DESCRIPTION
- 230 volt, 50 Hz SRS-600 PROPACK
• Charger output: SRS-600 ProPack Rechargeable Electric Backpack Sprayer
- 12 volt DC, 1.0 amp

Tank PART NO. KITS
• 4.0 US gallons (15.1 litres)
Polyethylene Spray Hose PROPACK PARTS KIT LIST
• Reinforced/Braided PVC 94-534-00 Shoulder Harness Kit
94-536-00 Complete Battery Pack Assembly
Spray Wand
• All Polypropylene with an adjustable 94-537-00 Wall Charger and Cable
cone nozzle 94-538-00 Complete Pump Assembly with Inlet and Outlet
Hoses and Hardware
94-539-00 PCB with Wire Harness
94-541-00 Tank Only
94-542-00 Spray Wand with Hose Clamp and Inline Strainer
94-543-00 Pump Cover and Mounting Screws
94-544-00 Spray Hose and Hardware
