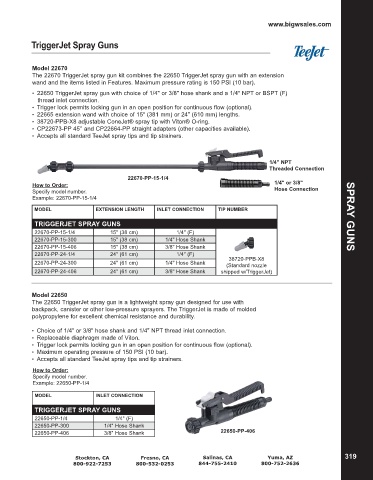

Page 321 - Catalog

www.bigwsales.com

TriggerJet Spray Guns

Model 22670
The 22670 TriggerJet spray gun kit combines the 22650 TriggerJet spray gun with an extension
wand and the items listed in Features. Maximum pressure rating is 150 PSI (10 bar).

• 22650 TriggerJet spray gun with choice of 1/4" or 3/8" hose shank and a 1/4" NPT or BSPT (F)
thread inlet connection.
• Trigger lock permits locking gun in an open position for continuous flow (optional).
• 22665 extension wand with choice of 15" (381 mm) or 24" (610 mm) lengths.
• 38720-PPB-X8 adjustable ConeJet® spray tip with Viton® O-ring.
• CP22673-PP 45° and CP22664-PP straight adapters (other capacities available).
• Accepts all standard TeeJet spray tips and tip strainers.

1/4" NPT
Threaded Connection
22670-PP-15-1/4
How to Order: 1/4" or 3/8"
Specify model number. Hose Connection
Example: 22670-PP-15-1/4

MODEL EXTENSION LENGTH INLET CONNECTION TIP NUMBER
TRIGGERJET SPRAY GUNS SPRAY GUNS
22670-PP-15-1/4 15" (38 cm) 1/4" (F)
22670-PP-15-300 15" (38 cm) 1/4" Hose Shank
22670-PP-15-406 15" (38 cm) 3/8" Hose Shank
22670-PP-24-1/4 24" (61 cm) 1/4" (F)
38720-PPB-X8
22670-PP-24-300 24" (61 cm) 1/4" Hose Shank (Standard nozzle
22670-PP-24-406 24" (61 cm) 3/8" Hose Shank shipped w/TriggerJet)

Model 22650
The 22650 TriggerJet spray gun is a lightweight spray gun designed for use with
backpack, canister or other low-pressure sprayers. The TriggerJet is made of molded
polypropylene for excellent chemical resistance and durability.

• Choice of 1/4" or 3/8" hose shank and 1/4" NPT thread inlet connection.
• Replaceable diaphragm made of Viton.
• Trigger lock permits locking gun in an open position for continuous flow (optional).
• Maximum operating pressure of 150 PSI (10 bar).
• Accepts all standard TeeJet spray tips and tip strainers.
How to Order:
Specify model number.
Example: 22650-PP-1/4

MODEL INLET CONNECTION

TRIGGERJET SPRAY GUNS
22650-PP-1/4 1/4" (F)
22650-PP-300 1/4" Hose Shank
22650-PP-406 3/8" Hose Shank 22650-PP-406
