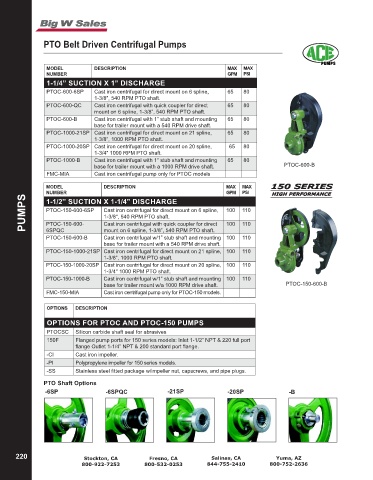

PTO Belt Driven Centrifugal Pumps

MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
1-1/4” SUCTION X 1” DISCHARGE
PTOC-600-6SP Cast iron centrifugal for direct mount on 6 spline, 65 80
1-3/8", 540 RPM PTO shaft.
PTOC-600-QC Cast iron centrifugal with quick coupler for direct 65 80
mount on 6 spline, 1-3/8”, 540 RPM PTO shaft.
PTOC-600-B Cast iron centrifugal with 1” stub shaft and mounting 65 80
base for trailer mount with a 540 RPM drive shaft.
PTOC-1000-21SP Cast iron centrifugal for direct mount on 21 spline, 65 80
1-3/8”, 1000 RPM PTO shaft.
PTOC-1000-20SP Cast iron centrifugal for direct mount on 20 spline, 65 80
1-3/4" 1000 RPM PTO shaft.
PTOC-1000-B Cast iron centrifugal with 1” stub shaft and mounting 65 80
base for trailer mount with a 1000 RPM drive shaft. PTOC-600-B
FMC-MIA Cast iron centrifugal pump only for PTOC models
150 SERIES
MODEL DESCRIPTION MAX MAX 150 SERIES
NUMBER GPM PSI HIGH PERFORMANCEHIGH PERFORMANCE
PUMPS PTOC-150-600-6SP Cast iron centrifugal for direct mount on 6 spline, 100 110
1-1/2” SUCTION X 1-1/4” DISCHARGE

1-3/8", 540 RPM PTO shaft.
110
Cast iron centrifugal with quick coupler for direct
100
PTOC-150-600-
6SPQC
PTOC-150-600-B mount on 6 spline, 1-3/8”, 540 RPM PTO shaft. 110
Cast iron centrifugal w/1” stub shaft and mounting 100
base for trailer mount with a 540 RPM drive shaft.
PTOC-150-1000-21SP Cast iron centrifugal for direct mount on 21 spline, 100 110
1-3/8”, 1000 RPM PTO shaft.
PTOC-150-1000-20SP Cast iron centrifugal for direct mount on 20 spline, 100 110
1-3/4" 1000 RPM PTO shaft.
PTOC-150-1000-B Cast iron centrifugal w/1” stub shaft and mounting 100 110
base for trailer mount w/a 1000 RPM drive shaft. PTOC-150-600-B
FMC-150-MIA Cast iron centrifugal pump only for PTOC-150 models.

OPTIONS DESCRIPTION

OPTIONS FOR PTOC AND PTOC-150 PUMPS
PTOCSC Silicon carbide shaft seal for abrasives
150F Flanged pump ports for 150 series models: Inlet 1-1/2” NPT & 220 full port
flange Outlet 1-1/4” NPT & 200 standard port flange.
-CI Cast iron impeller.
-PI Polypropylene impeller for 150 series models.
-SS Stainless steel fitted package w/impeller nut, capscrews, and pipe plugs.
PTO Shaft Options
-6SP -6SPQC -21SP -20SP -B
