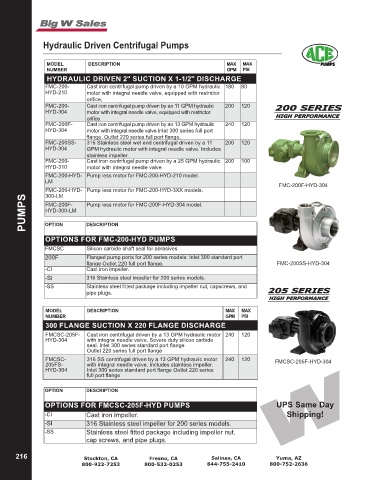

Page 218 - Catalog

Hydraulic Driven Centrifugal Pumps

MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
HYDRAULIC DRIVEN 2" SUCTION X 1-1/2" DISCHARGE
FMC-200- Cast iron centrifugal pump driven by a 10 GPM hydraulic 180 80
HYD-210 motor with integral needle valve, equipped with restrictor
orifice.
FMC-200- Cast iron centrifugal pump driven by an 11 GPM hydraulic 200 120 200 SERIES
200 SERIES
HYD-304 motor with integral needle valve, equipped with restrictor
orifice. HIGH PERFORMANCEHIGH PERFORMANCE
FMC-200F- Cast iron centrifugal pump driven by an 13 GPM hydraulic 240 120
HYD-304 motor with integral needle valve Inlet 300 series full port
flange. Outlet 220 series full port flange.
FMC-200SS- 316 Stainless steel wet end centrifugal driven by a 11 200 120
HYD-304 GPM hydraulic motor with integral needle valve. Includes
stainless impeller.
FMC-200- Cast iron centrifugal pump driven by a 25 GPM hydraulic 200 100
HYD-310 motor with integral needle valve.
FMC-200-HYD- Pump less motor for FMC-200-HYD-210 model.
LM FMC-200F-HYD-304
FMC-200-HYD- Pump less motor for FMC-200-HYD-3XX models.
300-LM
PUMPS OPTION DESCRIPTION
FMC-200F-
Pump less motor for FMC-200F-HYD-304 model.
HYD-300-LM

OPTIONS FOR FMC-200-HYD PUMPS

FMCSC Silicon carbide shaft seal for abrasives
200F Flanged pump ports for 200 series models: Inlet 300 standard port
flange Outlet 220 full port flange. FMC-200SS-HYD-304
-CI Cast iron impeller.
-SI 316 Stainless steel impeller for 200 series models.
-SS Stainless steel fitted package including impeller nut, capscrews, and
205 SERIES
pipe plugs. 205 SERIES
HIGH PERFORMANCEHIGH PERFORMANCE
MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
300 FLANGE SUCTION X 220 FLANGE DISCHARGE
FMCSC-205F- Cast iron centrifugal driven by a 13 GPM hydraulic motor 240 120
HYD-304 with integral needle valve. Severe duty silicon carbide
seal. Inlet 300 series standard port flange
Outlet 220 series full port flange
FMCSC- 316 SS centrifugal driven by a 13 GPM hydraulic motor 240 120 FMCSC-205F-HYD-304
205FS- with integral needle valve. Includes stainless impeller.
HYD-304 Inlet 300 series standard port flange Outlet 220 series
full port flange

OPTION DESCRIPTION
OPTIONS FOR FMCSC-205F-HYD PUMPS UPS Same Day

-CI Cast iron impeller. Shipping!
-SI 316 Stainless steel impeller for 200 series models.
-SS Stainless steel fitted package including impeller nut,
cap screws, and pipe plugs.
