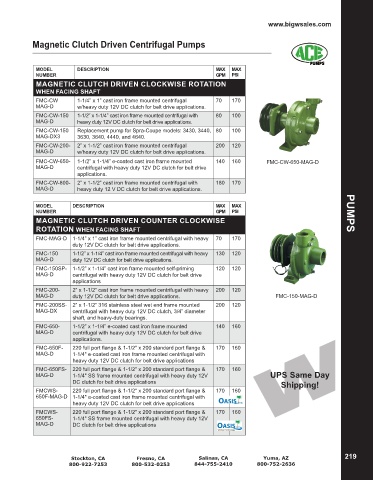

Page 221 - Catalog

www.bigwsales.com

Magnetic Clutch Driven Centrifugal Pumps

MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
MAGNETIC CLUTCH DRIVEN CLOCKWISE ROTATION
WHEN FACING SHAFT
FMC-CW 1-1/4” x 1” cast iron frame mounted centrifugal 70 170
MAG-D w/heavy duty 12V DC clutch for belt drive applications.
FMC-CW-150 1-1/2” x 1-1/4” cast iron frame mounted centrifugal with 80 100
MAG-D heavy duty 12V DC clutch for belt drive applications.
FMC-CW-150 Replacement pump for Spra-Coupe models: 3430, 3440, 80 100
MAG-DX3 3630, 3640, 4440, and 4640.
FMC-CW-200- 2” x 1-1/2” cast iron frame mounted centrifugal 200 120
MAG-D w/heavy duty 12V DC clutch for belt drive applications.
FMC-CW-650- 1-1/2” x 1-1/4” e-coated cast iron frame mounted 140 160 FMC-CW-650-MAG-D
MAG-D centrifugal with heavy duty 12V DC clutch for belt drive
applications.
FMC-CW-800- 2” x 1-1/2” cast iron frame mounted centrifugal with 180 170
MAG-D heavy duty 12 V DC clutch for belt drive applications.

MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI PUMPS
MAGNETIC CLUTCH DRIVEN COUNTER CLOCKWISE
ROTATION WHEN FACING SHAFT
FMC-MAG-D 1-1/4” x 1” cast iron frame mounted centrifugal with heavy 70 170
duty 12V DC clutch for belt drive applications.
FMC-150 1-1/2” x 1-1/4” cast iron frame mounted centrifugal with heavy 130 120
MAG-D duty 12V DC clutch for belt drive applications.
FMC-150SP- 1-1/2” x 1-1/4” cast iron frame mounted self-priming 120 120
MAG-D centrifugal with heavy duty 12V DC clutch for belt drive
applications
FMC-200- 2” x 1-1/2” cast iron frame mounted centrifugal with heavy 200 120
MAG-D duty 12V DC clutch for belt drive applications. FMC-150-MAG-D
FMC-200SS- 2” x 1-1/2” 316 stainless steel wet end frame mounted 200 120
MAG-DX centrifugal with heavy duty 12V DC clutch, 3/4” diameter
shaft, and heavy-duty bearings.
FMC-650- 1-1/2” x 1-1/4” e-coated cast iron frame mounted 140 160
MAG-D centrifugal with heavy duty 12V DC clutch for belt drive
applications.
FMC-650F- 220 full port flange & 1-1/2" x 200 standard port flange & 170 160
MAG-D 1-1/4" e-coated cast iron frame mounted centrifugal with
heavy duty 12V DC clutch for belt drive applications
FMC-650FS- 220 full port flange & 1-1/2" x 200 standard port flange & 170 160
MAG-D 1-1/4" SS frame mounted centrifugal with heavy duty 12V UPS Same Day
DC clutch for belt drive applications Shipping!
FMCWS- 220 full port flange & 1-1/2" x 200 standard port flange & 170 160
650F-MAG-D 1-1/4" e-coated cast iron frame mounted centrifugal with
heavy duty 12V DC clutch for belt drive applications
FMCWS- 220 full port flange & 1-1/2" x 200 standard port flange & 170 160
650FS- 1-1/4" SS frame mounted centrifugal with heavy duty 12V
MAG-D DC clutch for belt drive applications

Stockton, CA Fresno, CA Salinas, CA Yuma, AZ Stockton, CA Fresno, CA Salinas, CA Yuma, AZ 219
800-922-7253 800-532-0253 844-755-2410 800-752-2636 800-922-7253 800-532-0253 844-755-2410 800-752-2636
