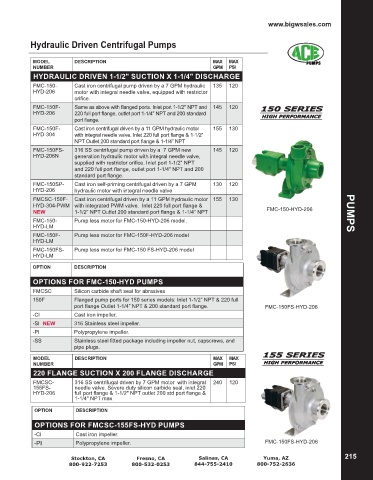

Page 217 - Catalog

www.bigwsales.com

Hydraulic Driven Centrifugal Pumps

MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
HYDRAULIC DRIVEN 1-1/2" SUCTION X 1-1/4" DISCHARGE
FMC-150- Cast iron centrifugal pump driven by a 7 GPM hydraulic 135 120
HYD-206 motor with integral needle valve, equipped with restrictor
orifice.
FMC-150F- Same as above with flanged ports. Inlet port 1-1/2" NPT and 145 120 150 SERIES
150 SERIES
HYD-206 220 full port flange, outlet port 1-1/4" NPT and 200 standard
port flange. HIGH PERFORMANCEHIGH PERFORMANCE
FMC-150F- Cast iron centrifugal driven by a 11 GPM hydraulic motor 155 130
HYD-304 with integral needle valve. Inlet 220 full port flange & 1-1/2”
NPT Outlet 200 standard port flange & 1-1/4” NPT
FMC-150FS- 316 SS centrifugal pump driven by a 7 GPM new 145 120
HYD-206N generation hydraulic motor with integral needle valve,
supplied with restrictor orifice. Inlet port 1-1/2" NPT
and 220 full port flange, outlet port 1-1/4" NPT and 200
standard port flange.
FMC-150SP- Cast iron self-priming centrifugal driven by a 7 GPM 130 120
HYD-206 hydraulic motor with integral needle valve
FMCSC-150F- Cast iron centrifugal driven by a 11 GPM hydraulic motor 155 130
HYD-304-PWM with integrated PWM valve. Inlet 220 full port flange &
NEW 1-1/2” NPT Outlet 200 standard port flange & 1-1/4” NPT FMC-150-HYD-206 PUMPS
FMC-150- Pump less motor for FMC-150-HYD-206 model.
HYD-LM
FMC-150F- Pump less motor for FMC-150F-HYD-206 model
HYD-LM
FMC-150FS- Pump less motor for FMC-150 FS-HYD-206 model
HYD-LM

OPTION DESCRIPTION
OPTIONS FOR FMC-150-HYD PUMPS

FMCSC Silicon carbide shaft seal for abrasives
150F Flanged pump ports for 150 series models: Inlet 1-1/2” NPT & 220 full
port flange Outlet 1-1/4” NPT & 200 standard port flange. FMC-150FS-HYD-206
-CI Cast iron impeller.
-SI NEW 316 Stainless steel impeller.
-PI Polypropylene impeller.
-SS Stainless steel fitted package including impeller nut, capscrews, and
pipe plugs.
155 SERIES
155 SERIES
MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI HIGH PERFORMANCEHIGH PERFORMANCE
220 FLANGE SUCTION X 200 FLANGE DISCHARGE
FMCSC- 316 SS centrifugal driven by 7 GPM motor with integral 240 120
155FS- needle valve. Severe duty silicon carbide seal, inlet 220
HYD-206 full port flange & 1-1/2" NPT outlet 200 std port flange &
1-1/4" NPT max

OPTION DESCRIPTION

OPTIONS FOR FMCSC-155FS-HYD PUMPS
-CI Cast iron impeller.
-PI Polypropylene impeller. FMC-150FS-HYD-206
