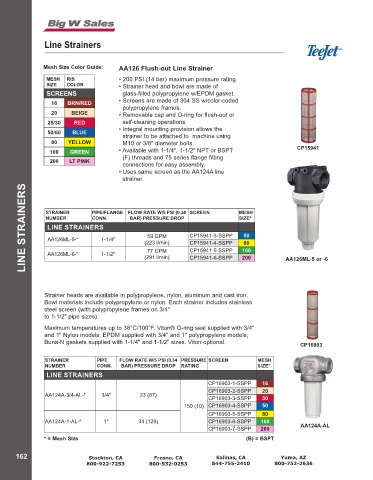

Page 164 - Catalog

Line Strainers

Mesh Size Color Guide: AA126 Flush-out Line Strainer

MESH RIB • 200 PSI (14 bar) maximum pressure rating.
SIZE COLOR • Strainer head and bowl are made of
SCREENS glass-filled polypropylene w/EPDM gasket.
16 BRN/RED • Screens are made of 304 SS w/color-coded
polypropylene frames.
20 BEIGE • Removable cap and O-ring for flush-out or
25/30 RED self-cleaning operations.
• Integral mounting provision allows the
50/60 BLUE
strainer to be attached to machine using
80 YELLOW M10 or 3/8" diameter bolts.
100 GREEN • Available with 1-1/4", 1-1/2" NPT or BSPT CP15941
200 LT PINK (F) threads and 75 series flange fitting
connections for easy assembly.
• Uses same screen as the AA124A line
strainer.
LINE STRAINERS STRAINER PIPE/FLANGE FLOW RATE W/5 PSI (0.34 SCREEN MESH AA126ML-5 or -6

NUMBER
CONN.
SIZE*
BAR) PRESSURE DROP
LINE STRAINERS
CP15941-3-SSPP
50
59 GPM
AA126ML-5-*
1-1/4"
(223 l/min)
CP15941-4-SSPP
80
CP15941-5-SSPP
100
77 GPM
AA126ML-6-*
1-1/2"
(291 l/min)
CP15941-6-SSPP
200
Strainer heads are available in polypropylene, nylon, aluminum and cast iron.
Bowl materials include polypropylene or nylon. Each strainer includes stainless
steel screen (with polypropylene frames on 3/4"
to 1-1/2" pipe sizes).
Maximum temperatures up to 38°C/100°F. Viton® O-ring seal supplied with 3/4"
and 1" Nylon models; EPDM supplied with 3/4" and 1" polypropylene models;
Buna-N gaskets supplied with 1-1/4" and 1-1/2" sizes. Viton optional. CP16903

STRAINER PIPE FLOW RATE W/5 PSI (0.34 PRESSURE SCREEN MESH
NUMBER CONN. BAR) PRESSURE DROP RATING SIZE*
LINE STRAINERS
CP16903-1-SSPP 16
CP16903-2-SSPP 20
AA124A-3/4-AL-* 3/4" 23 (87)
CP16903-3-SSPP 30
150 (10) CP16903-4-SSPP 50
CP16903-5-SSPP 80
AA124A-1-AL-* 1" 34 (129) CP16903-6-SSPP 100
CP16903-7-SSPP 200 AA124A-AL
* = Mesh Size (B) = BSPT
