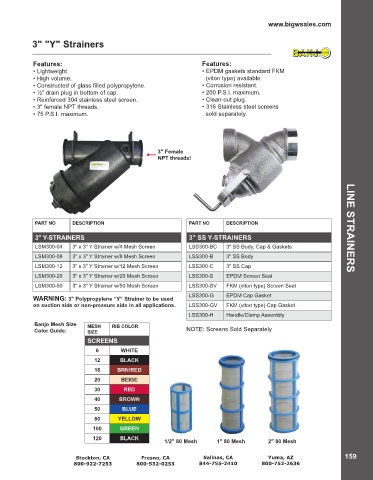

3" "Y" Strainers

Features: Features:
• Lightweight. • EPDM gaskets standard FKM
• High volume. (viton type) available.
• Constructed of glass filled polypropylene. • Corrosion resistant.
• ½" drain plug in bottom of cap. • 200 P.S.I. maximum.
• Reinforced 304 stainless steel screen. • Clean-out plug.
• 3" female NPT threads. • 316 Stainless steel screens
• 75 P.S.I. maximum. sold separately.

3" Female
NPT threads!

PART NO DESCRIPTION PART NO DESCRIPTION LINE STRAINERS

3" Y-STRAINERS 3" SS Y-STRAINERS
LSM300-04 3" x 3" Y Strainer w/4 Mesh Screen LSS300-BC 3" SS Body, Cap & Gaskets
LSM300-08 3" x 3" Y Strainer w/8 Mesh Screen LSS300-B 3" SS Body
LSM300-12 3" x 3" Y Strainer w/12 Mesh Screen LSS300-C 3" SS Cap
LSM300-20 3" x 3" Y Strainer w/20 Mesh Screen LSS300-S EPDM Screen Seal

LSM300-50 3" x 3" Y Strainer w/50 Mesh Screen LSS300-SV FKM (viton type) Screen Seal
LSS300-G EPDM Cap Gasket
WARNING: 3" Polypropylene “Y” Strainer to be used
on suction side or non-pressure side in all applications. LSS300-GV FKM (viton type) Cap Gasket
LSS300-H Handle/Clamp Assembly
Banjo Mesh Size MESH RIB COLOR
Color Guide: SIZE NOTE: Screens Sold Separately
SCREENS
6 WHITE
12 BLACK
16 BRN/RED
20 BEIGE
30 RED
40 BROWN

50 BLUE
80 YELLOW
100 GREEN
120 BLACK 1/2" 80 Mesh 1" 80 Mesh 2" 80 Mesh
