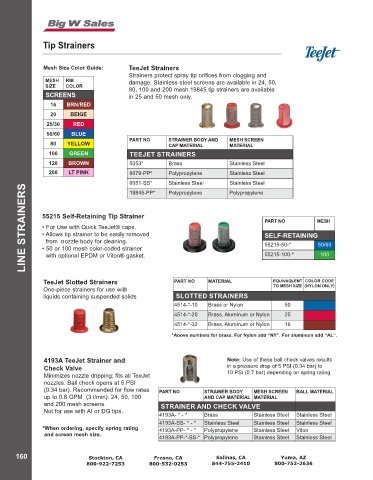

Page 162 - Catalog

Tip Strainers

Mesh Size Color Guide: TeeJet Strainers
Strainers protect spray tip orifices from clogging and
MESH RIB damage. Stainless steel screens are available in 24, 50,
SIZE COLOR 80, 100 and 200 mesh.19845 tip strainers are available
SCREENS in 25 and 50 mesh only.
16 BRN/RED
20 BEIGE
25/30 RED
50/60 BLUE
PART NO STRAINER BODY AND MESH SCREEN
80 YELLOW CAP MATERIAL MATERIAL
100 GREEN TEEJET STRAINERS
120 BROWN 5053* Brass Stainless Steel
200 LT PINK 8079-PP* Polypropylene Stainless Steel
6051-SS* Stainless Steel Stainless Steel
LINE STRAINERS 55215 Self-Retaining Tip Strainer PART NO MESH
Polypropylene
Polypropylene
19845-PP*

• For Use with Quick TeeJet® caps.
• Allows tip strainer to be easily removed
SELF-RETAINING
from nozzle body for cleaning.
55215-50-*
50/60
• 50 or 100 mesh color-coded strainer
55215-100-*
100
with optional EPDM or Viton® gasket.
TeeJet Slotted Strainers PART NO MATERIAL EQUIVAQLENT COLOR CODE
One-piece strainers for use with TO MESH SIZE (NYLON ONLY)
liquids containing suspended solids SLOTTED STRAINERS
4514-*-10 Brass or Nylon 50
4514-*-20 Brass, Aluminum or Nylon 25
4514-*-32 Brass, Aluminum or Nylon 16
*Above numbers for brass. For Nylon add “NY”. For aluminum add “AL”.

4193A TeeJet Strainer and Note: Use of these ball check valves results
Check Valve in a pressure drop of 5 PSI (0.34 bar) to
10 PSI (0.7 bar) depending on spring rating.
Minimizes nozzle dripping; fits all TeeJet
nozzles. Ball check opens at 5 PSI
(0.34 bar). Recommended for flow rates PART NO STRAINER BODY MESH SCREEN BALL MATERIAL
up to 0.8 GPM (3 l/min). 24, 50, 100 AND CAP MATERIAL MATERIAL
and 200 mesh screens. STRAINER AND CHECK VALVE
Not for use with AI or DG tips.
4193A- * - * Brass Stainless Steel Stainless Steel
4193A-SS- * - * Stainless Steel Stainless Steel Stainless Steel
*When ordering, specify spring rating 4193A-PP- * - * Polypropylene Stainless Steel Viton
and screen mesh size.
4193A-PP-*-SS-* Polypropylene Stainless Steel Stainless Steel
