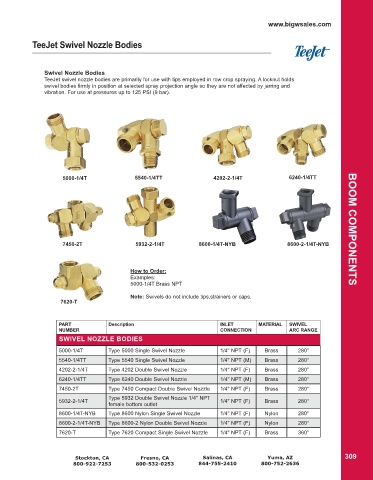

Page 311 - 2022 Online Catalog

www.bigwsales.com

TeeJet Swivel Nozzle Bodies

Swivel Nozzle Bodies
TeeJet swivel nozzle bodies are primarily for use with tips employed in row crop spraying. A locknut holds
swivel bodies firmly in position at selected spray projection angle so they are not affected by jarring and
vibration. For use at pressures up to 125 PSI (9 bar).

5000-1/4T 5540-1/4TT 4202-2-1/4T 6240-1/4TT

7450-2T 5932-2-1/4T 8600-1/4T-NYB 8600-2-1/4T-NYB BOOM COMPONENTS

How to Order:
Examples:
5000-1/4T Brass NPT

Note: Swivels do not include tips,strainers or caps.
7620-T

PART Description INLET MATERIAL SWIVEL
NUMBER CONNECTION ARC RANGE
SWIVEL NOZZLE BODIES

5000-1/4T Type 5000 Single Swivel Nozzle 1/4" NPT (F) Brass 280°
5540-1/4TT Type 5540 Single Swivel Nozzle 1/4" NPT (M) Brass 280°
4202-2-1/4T Type 4202 Double Swivel Nozzle 1/4" NPT (F) Brass 280°
6240-1/4TT Type 6240 Double Swivel Nozzle 1/4" NPT (M) Brass 280°
7450-2T Type 7450 Compact Double Swivel Nozzle 1/4" NPT (F) Brass 280°
Type 5932 Double Swivel Nozzle 1/4" NPT
5932-2-1/4T 1/4" NPT (F) Brass 280°
female bottom outlet
8600-1/4T-NYB Type 8600 Nylon Single Swivel Nozzle 1/4" NPT (F) Nylon 280°
8600-2-1/4T-NYB Type 8600-2 Nylon Double Swivel Nozzle 1/4" NPT (F) Nylon 280°
7620-T Type 7620 Compact Single Swivel Nozzle 1/4" NPT (F) Brass 360°
