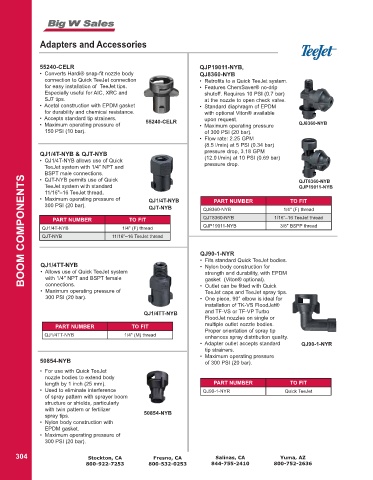

Page 306 - 2022 Online Catalog

Adapters and Accessories

55240-CELR QJP19011-NYB,
• Converts Hardi® snap-fit nozzle body QJ8360-NYB
connection to Quick TeeJet connection • Retrofits to a Quick TeeJet system.
for easy installation of TeeJet tips. • Features ChemSaver® no-drip
Especially useful for AIC, XRC and shutoff. Requires 10 PSI (0.7 bar)
SJ7 tips. at the nozzle to open check valve.
• Acetal construction with EPDM gasket • Standard diaphragm of EPDM
for durability and chemical resistance. with optional Viton® available
• Accepts standard tip strainers. 55240-CELR upon request.
• Maximum operating pressure of • Maximum operating pressure QJ8360-NYB
150 PSI (10 bar). of 300 PSI (20 bar).
• Flow rate: 2.25 GPM
(8.5 l/min) at 5 PSI (0.34 bar)
QJ1/4T-NYB & QJT-NYB pressure drop, 3.18 GPM
• QJ1/4T-NYB allows use of Quick (12.0 l/min) at 10 PSI (0.69 bar)
TeeJet system with 1/4" NPT and pressure drop.
BSPT male connections.
BOOM COMPONENTS
• QJT-NYB permits use of Quick QJT8360-NYB
TeeJet system with standard QJP19011-NYB
11/16"–16 TeeJet thread.
• Maximum operating pressure of QJ1/4T-NYB PART NUMBER TO FIT
300 PSI (20 bar). QJT-NYB QJ8360-NYB 1/4" (F) thread

PART NUMBER TO FIT QJT8360-NYB 1/16"–16 TeeJet thread
QJ1/4T-NYB 1/4" (F) thread QJP19011-NYB 3/8" BSPP thread
QJT-NYB 11/16"–16 TeeJet thread

QJ90-1-NYR
• Fits standard Quick TeeJet bodies.
QJ1/4TT-NYB • Nylon body construction for
• Allows use of Quick TeeJet system strength and durability, with EPDM
with 1/4" NPT and BSPT female gasket (Viton® optional).
connections. • Outlet can be fitted with Quick
• Maximum operating pressure of TeeJet caps and TeeJet spray tips.
300 PSI (20 bar). • One piece, 90° elbow is ideal for
installation of TK-VS FloodJet®
QJ1/4TT-NYB and TF-VS or TF-VP Turbo
FloodJet nozzles on single or
PART NUMBER TO FIT multiple outlet nozzle bodies.
Proper orientation of spray tip
QJ1/4TT-NYB 1/4" (M) thread enhances spray distribution quality.
• Adapter outlet accepts standard QJ90-1-NYR
tip strainers.
• Maximum operating pressure
50854-NYB of 300 PSI (20 bar).

• For use with Quick TeeJet
nozzle bodies to extend body
length by 1 inch (25 mm). PART NUMBER TO FIT
• Used to eliminate interference QJ90-1-NYR Quick TeeJet
of spray pattern with sprayer boom
structure or shields, particularly
with twin pattern or fertilizer
spray tips. 50854-NYB
• Nylon body construction with
EPDM gasket.
• Maximum operating pressure of
300 PSI (20 bar).
