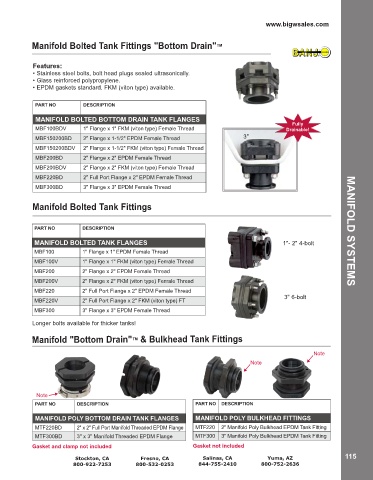

Page 117 - 2022 Online Catalog

www.bigwsales.com

Manifold Bolted Tank Fittings "Bottom Drain"™

Features:
• Stainless steel bolts, bolt head plugs sealed ultrasonically.
• Glass reinforced polypropylene.
• EPDM gaskets standard. FKM (viton type) available.

PART NO DESCRIPTION

MANIFOLD BOLTED BOTTOM DRAIN TANK FLANGES
Fully
MBF100BDV 1" Flange x 1" FKM (viton type) Female Thread Drainable!
MBF150200BD 2" Flange x 1-1/2" EPDM Female Thread 3"
MBF150200BDV 2" Flange x 1-1/2" FKM (viton type) Female Thread
MBF200BD 2" Flange x 2" EPDM Female Thread

MBF200BDV 2" Flange x 2" FKM (viton type) Female Thread
MBF220BD 2" Full Port Flange x 2" EPDM Female Thread
MBF300BD 3" Flange x 3" EPDM Female Thread

Manifold Bolted Tank Fittings

PART NO DESCRIPTION MANIFOLD SYSTEMS

MANIFOLD BOLTED TANK FLANGES 1"- 2" 4-bolt
MBF100 1" Flange x 1" EPDM Female Thread
MBF100V 1" Flange x 1" FKM (viton type) Female Thread
MBF200 2" Flange x 2" EPDM Female Thread
MBF200V 2" Flange x 2" FKM (viton type) Female Thread
MBF220 2" Full Port Flange x 2" EPDM Female Thread
3" 6-bolt
MBF220V 2" Full Port Flange x 2" FKM (viton type) FT
MBF300 3" Flange x 3" EPDM Female Thread
Longer bolts available for thicker tanks!

Manifold "Bottom Drain"™ & Bulkhead Tank Fittings

Note
Note

Note
PART NO DESCRIPTION PART NO DESCRIPTION

MANIFOLD POLY BOTTOM DRAIN TANK FLANGES MANIFOLD POLY BULKHEAD FITTINGS
MTF220BD 2" x 2" Full Port Manifold Threaded EPDM Flange MTF220 2" Manifold Poly Bulkhead EPDM Tank Fitting
MTF300BD 3" x 3" Manifold Threaded EPDM Flange MTF300 3" Manifold Poly Bulkhead EPDM Tank Fitting
Gasket and clamp not included Gasket not included
