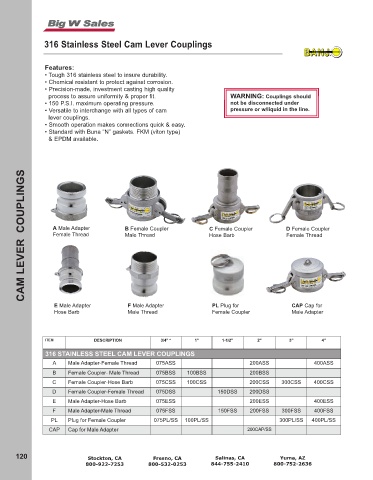

316 Stainless Steel Cam Lever Couplings

Features:
• Tough 316 stainless steel to insure durability.
• Chemical resistant to protect against corrosion.
• Precision-made, investment casting high quality
process to assure uniformity & proper fit. WARNING: Couplings should
• 150 P.S.I. maximum operating pressure. not be disconnected under
• Versatile to interchange with all types of cam pressure or w/liquid in the line.
lever couplings.
• Smooth operation makes connections quick & easy.
• Standard with Buna “N” gaskets. FKM (viton type)
& EPDM available.

CAM LEVER COUPLINGS

A Male Adapter B Female Coupler C Female Coupler D Female Coupler
Female Thread Male Thread Hose Barb Female Thread

E Male Adapter F Male Adapter PL Plug for CAP Cap for
Hose Barb Male Thread Female Coupler Male Adapter

ITEM DESCRIPTION 3/4" * 1" 1-1/2" 2" 3" 4"

316 STAINLESS STEEL CAM LEVER COUPLINGS
A Male Adapter-Female Thread 075ASS 200ASS 400ASS
B Female Coupler- Male Thread 075BSS 100BSS 200BSS
C Female Coupler-Hose Barb 075CSS 100CSS 200CSS 300CSS 400CSS
D Female Coupler-Female Thread 075DSS 150DSS 200DSS
E Male Adapter-Hose Barb 075ESS 200ESS 400ESS
F Male Adapter-Male Thread 075FSS 150FSS 200FSS 300FSS 400FSS
PL Plug for Female Coupler 075PL/SS 100PL/SS 300PL/SS 400PL/SS
CAP Cap for Male Adapter 200CAP/SS
