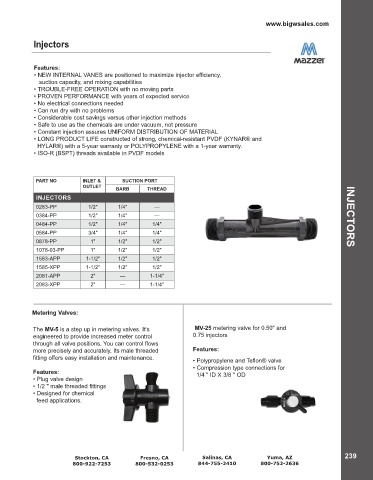

Page 241 - Catalog

www.bigwsales.com

Injectors

Features:
• NEW INTERNAL VANES are positioned to maximize injector efficiency,
suction capacity, and mixing capabilities
• TROUBLE-FREE OPERATION with no moving parts
• PROVEN PERFORMANCE with years of expected service
• No electrical connections needed
• Can run dry with no problems
• Considerable cost savings versus other injection methods
• Safe to use as the chemicals are under vacuum, not pressure
• Constant injection assures UNIFORM DISTRIBUTION OF MATERIAL
• LONG PRODUCT LIFE constructed of strong, chemical-resistant PVDF (KYNAR® and
HYLAR®) with a 5-year warranty or POLYPROPYLENE with a 1-year warranty.
• ISO-R (BSPT) threads available in PVDF models

PART NO INLET & SUCTION PORT
OUTLET
BARB THREAD
INJECTORS
0283-PP 1/2" 1/4" —
0384-PP 1/2" 1/4" — INJECTORS
0484-PP 1/2" 1/4" 1/4"
0584-PP 3/4" 1/4" 1/4"
0878-PP 1" 1/2" 1/2"
1078-03-PP 1" 1/2" 1/2"
1583-APP 1-1/2" 1/2" 1/2"
1585-XPP 1-1/2" 1/2" 1/2"
2081-APP 2" — 1-1/4"
2083-XPP 2" — 1-1/4"

Metering Valves:

The MV-5 is a step up in metering valves. It’s MV-25 metering valve for 0.50" and
engineered to provide increased meter control 0.75 injectors
through all valve positions. You can control flows
more precisely and accurately. Its male threaded Features:
fitting offers easy installation and maintenance. • Polypropylene and Teflon® valve
• Compression type connections for
Features: 1/4 " ID X 3/8 " OD
• Plug valve design
• 1/2 " male threaded fittings
• Designed for chemical
feed applications.
