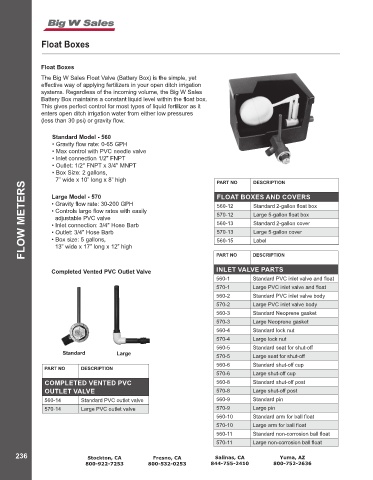

Page 238 - Catalog

Float Boxes

Float Boxes

The Big W Sales Float Valve (Battery Box) is the simple, yet
effective way of applying fertilizers in your open ditch irrigation
systems. Regardless of the incoming volume, the Big W Sales
Battery Box maintains a constant liquid level within the float box.
This gives perfect control for most types of liquid fertilizer as it
enters open ditch irrigation water from either low pressures
(less than 30 psi) or gravity flow.

Standard Model - 560
• Gravity flow rate: 0-65 GPH
• Max control with PVC needle valve
• Inlet connection 1/2" FNPT
• Outlet: 1/2" FNPT x 3/4" MNPT
• Box Size: 2 gallons,
7” wide x 10” long x 8” high PART NO DESCRIPTION
FLOW METERS • Gravity flow rate: 30-200 GPH 560-12 Standard 2-gallon float box

FLOAT BOXES AND COVERS
Large Model - 570
• Controls large flow rates with easily
Large 5-gallon float box
570-12
adjustable PVC valve
Standard 2-gallon cover
560-13
• Inlet connection: 3/4" Hose Barb
570-13
• Outlet: 3/4" Hose Barb
Large 5-gallon cover
• Box size: 5 gallons,
Label
560-15
13” wide x 17” long x 12” high
INLET VALVE PARTS
Completed Vented PVC Outlet Valve PART NO DESCRIPTION
560-1 Standard PVC inlet valve and float
570-1 Large PVC inlet valve and float
560-2 Standard PVC inlet valve body
570-2 Large PVC inlet valve body
560-3 Standard Neoprene gasket
570-3 Large Neoprene gasket
560-4 Standard lock nut
570-4 Large lock nut
560-5 Standard seat for shut-off
Standard Large 570-5 Large seat for shut-off
560-6 Standard shut-off cup
PART NO DESCRIPTION
570-6 Large shut-off cup
COMPLETED VENTED PVC 560-8 Standard shut-off post
OUTLET VALVE 570-8 Large shut-off post
560-14 Standard PVC outlet valve 560-9 Standard pin
570-14 Large PVC outlet valve 570-9 Large pin
560-10 Standard arm for ball float
570-10 Large arm for ball float
560-11 Standard non-corrosion ball float
570-11 Large non-corrosion ball float
