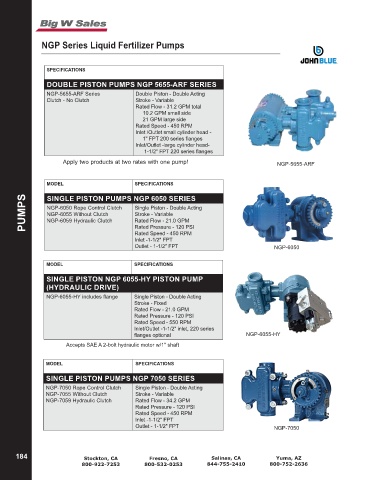

NGP Series Liquid Fertilizer Pumps

SPECIFICATIONS

DOUBLE PISTON PUMPS NGP 5655-ARF SERIES
NGP-5655-ARF Series Double Piston - Double Acting
Clutch - No Clutch Stroke - Variable
Rated Flow - 31.2 GPM total
10.2 GPM small side
21 GPM large side
Rated Speed - 450 RPM
Inlet /Outlet small cylinder head -
1" FPT 200 series flanges
Inlet/Outlet -large cylinder head-
1-1/2" FPT 220 series flanges
Apply two products at two rates with one pump! NGP-5655-ARF

MODEL SPECIFICATIONS

SINGLE PISTON PUMPS NGP 6050 SERIES
PUMPS NGP-6050 Rope Control Clutch Single Piston - Double Acting
Stroke - Variable
NGP-6055 Without Clutch
Rated Flow - 21.0 GPM
NGP-6059 Hydraulic Clutch
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT NGP-6050

MODEL SPECIFICATIONS

SINGLE PISTON NGP 6055-HY PISTON PUMP
(HYDRAULIC DRIVE)
NGP-6055-HY includes flange Single Piston - Double Acting
Stroke - Fixed
Rated Flow - 21.0 GPM
Rated Pressure - 120 PSI
Rated Speed - 550 RPM
Inlet/Outlet -1-1/2" inlet, 220 series
flanges optional NGP-6055-HY
Accepts SAE A 2-bolt hydraulic motor w/1" shaft

MODEL SPECIFICATIONS

SINGLE PISTON PUMPS NGP 7050 SERIES
NGP-7050 Rope Control Clutch Single Piston - Double Acting
NGP-7055 Without Clutch Stroke - Variable
NGP-7059 Hydraulic Clutch Rated Flow - 34.2 GPM
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT NGP-7050
