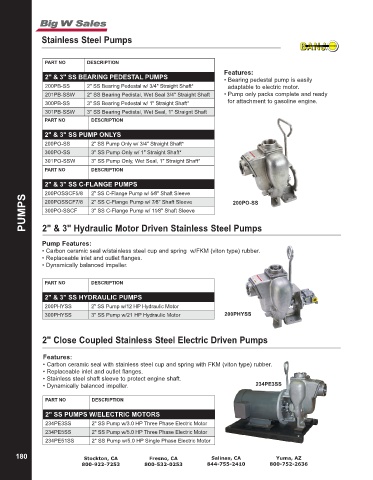

Page 182 - Catalog

Stainless Steel Pumps

PART NO DESCRIPTION
Features:
2" & 3" SS BEARING PEDESTAL PUMPS • Bearing pedestal pump is easily
200PB-SS 2" SS Bearing Pedestal w/ 3/4" Straight Shaft* adaptable to electric motor.
201PB-SSW 2" SS Bearing Pedistal, Wet Seal 3/4" Straight Shaft • Pump only packs complete and ready
300PB-SS 3" SS Bearing Pedestal w/ 1" Straight Shaft* for attachment to gasoline engine.
301PB-SSW 3" SS Bearing Pedistal, Wet Seal, 1" Straignt Shaft
PART NO DESCRIPTION
2" & 3" SS PUMP ONLYS

200PO-SS 2" SS Pump Only w/ 3/4" Straight Shaft*
300PO-SS 3" SS Pump Only w/ 1" Straight Shaft*
301PO-SSW 3" SS Pump Only, Wet Seal, 1" Straight Shaft*
PART NO DESCRIPTION

2" & 3" SS C-FLANGE PUMPS
200POSSCF5/8 2" SS C-Flange Pump w/ 5⁄8" Shaft Sleeve 200PO-SS
PUMPS 2" & 3" Hydraulic Motor Driven Stainless Steel Pumps
200POSSCF7/8
2" SS C-Flange Pump w/ 7⁄8" Shaft Sleeve
3" SS C-Flange Pump w/ 11⁄8" Shaft Sleeve
300PO-SSCF

Pump Features:
• Carbon ceramic seal w/stainless steel cup and spring w/FKM (viton type) rubber.
• Replaceable inlet and outlet flanges.
• Dynamically balanced impeller.

PART NO DESCRIPTION

2" & 3" SS HYDRAULIC PUMPS
200PHYSS 2" SS Pump w/12 HP Hydraulic Motor
300PHYSS 3" SS Pump w/21 HP Hydraulic Motor 200PHYSS

2" Close Coupled Stainless Steel Electric Driven Pumps

Features:
• Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber.
• Replaceable inlet and outlet flanges.
• Stainless steel shaft sleeve to protect engine shaft.
• Dynamically balanced impeller. 234PE3SS

PART NO DESCRIPTION
2" SS PUMPS W/ELECTRIC MOTORS
234PE3SS 2" SS Pump w/3.0 HP Three Phase Electric Motor
234PE5SS 2" SS Pump w/5.0 HP Three Phase Electric Motor
234PE51SS 2" SS Pump w/5.0 HP Single Phase Electric Motor
