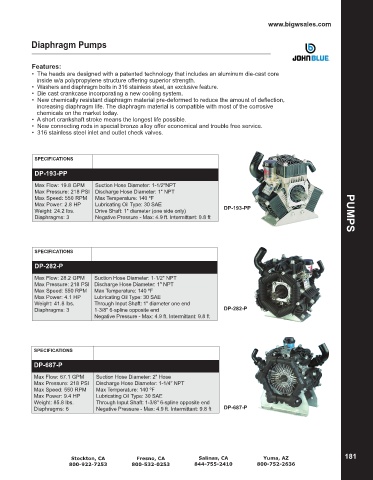

Page 183 - Catalog
P. 183
www.bigwsales.com
Diaphragm Pumps
Features:
• The heads are designed with a patented technology that includes an aluminum die-cast core
inside w/a polypropylene structure offering superior strength.
• Washers and diaphragm bolts in 316 stainless steel, an exclusive feature.
• Die cast crankcase incorporating a new cooling system.
• New chemically resistant diaphragm material pre-deformed to reduce the amount of deflection,
increasing diaphragm life. The diaphragm material is compatible with most of the corrosive
chemicals on the market today.
• A short crankshaft stroke means the longest life possible.
• New connecting rods in special bronze alloy offer economical and trouble free service.
• 316 stainless steel inlet and outlet check valves.
SPECIFICATIONS
DP-193-PP
Max Flow: 19.8 GPM Suction Hose Diameter: 1-1/2"NPT
Max Pressure: 218 PSI Discharge Hose Diameter: 1" NPT
Max Speed: 550 RPM Max Temperature: 140 ºF
Max Power: 2.8 HP Lubricating Oil Type: 30 SAE
Weight: 24.2 lbs. Drive Shaft: 1" diameter (one side only) DP-193-PP
Diaphragms: 3 Negative Pressure - Max: 4.9 ft. Intermittant: 9.8 ft PUMPS
SPECIFICATIONS
DP-282-P
Max Flow: 28.2 GPM Suction Hose Diameter: 1-1/2" NPT
Max Pressure: 218 PSI Discharge Hose Diameter: 1" NPT
Max Speed: 550 RPM Max Temperature: 140 ºF
Max Power: 4.1 HP Lubricating Oil Type: 30 SAE
Weight: 41.8 lbs. Through Input Shaft: 1" diameter one end
Diaphragms: 3 1-3/8" 6-spline opposite end DP-282-P
Negative Pressure - Max: 4.9 ft. Intermittant: 9.8 ft
SPECIFICATIONS
DP-687-P
Max Flow: 67.1 GPM Suction Hose Diameter: 2" Hose
Max Pressure: 218 PSI Discharge Hose Diameter: 1-1/4" NPT
Max Speed: 550 RPM Max Temperature: 140 ºF
Max Power: 9.4 HP Lubricating Oil Type: 30 SAE
Weight: 85.8 lbs. Through Input Shaft: 1-3/8" 6-spline opposite end
Diaphragms: 6 Negative Pressure - Max: 4.9 ft. Intermittant: 9.8 ft DP-687-P
