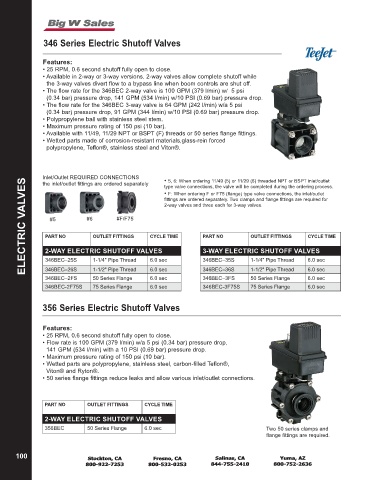

Page 102 - Catalog

346 Series Electric Shutoff Valves

Features:
• 25 RPM, 0.6 second shutoff fully open to close.
• Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while
the 3-way valves divert flow to a bypass line when boom controls are shut off.
• The flow rate for the 346BEC 2-way valve is 100 GPM (379 l/min) w/ 5 psi
(0.34 bar) pressure drop, 141 GPM (534 l/min) w/10 PSI (0.69 bar) pressure drop.
• The flow rate for the 346BEC 3-way valve is 64 GPM (242 l/min) w/a 5 psi
(0.34 bar) pressure drop, 91 GPM (344 l/min) w/10 PSI (0.69 bar) pressure drop.
• Polypropylene ball with stainless steel stem.
• Maximum pressure rating of 150 psi (10 bar).
• Available with 11/49, 11/29 NPT or BSPT (F) threads or 50 series flange fittings.
• Wetted parts made of corrosion-resistant materials,glass-rein forced
polypropylene, Teflon®, stainless steel and Viton®.

Inlet/Outlet REQUIRED CONNECTIONS • 5, 6: When ordering 11/49 (5) or 11/29 (6) threaded NPT or BSPT inlet/outlet
ELECTRIC VALVES PART NO #6 OUTLET FITTINGS CYCLE TIME PART NO OUTLET FITTINGS CYCLE TIME
the inlet/outlet fittings are ordered separately
type valve connections, the valve will be completed during the ordering process.
• F: When ordering F or F75 (flange) type valve connections, the inlet/outlet
fittings are ordered separately. Two clamps and flange fittings are required for
2-way valves and three each for 3-way valves.
#F/F75
#5

2-WAY ELECTRIC SHUTOFF VALVES
3-WAY ELECTRIC SHUTOFF VALVES
346BEC–25S
1-1/2" Pipe Thread
6.0 sec
6.0 sec
346BEC–36S
1-1/2" Pipe Thread
346BEC–26S
50 Series Flange
346BEC–3FS
6.0 sec
6.0 sec
50 Series Flange
346BEC–2FS 1-1/4" Pipe Thread 6.0 sec 346BEC–35S 1-1/4" Pipe Thread 6.0 sec
346BEC-2F75S 75 Series Flange 6.0 sec 346BEC-3F75S 75 Series Flange 6.0 sec
356 Series Electric Shutoff Valves
Features:
• 25 RPM, 0.6 second shutoff fully open to close.
• Flow rate is 100 GPM (379 l/min) w/a 5 psi (0.34 bar) pressure drop,
141 GPM (534 l/min) with a 10 PSI (0.69 bar) pressure drop.
• Maximum pressure rating of 150 psi (10 bar).
• Wetted parts are polypropylene, stainless steel, carbon-filled Teflon®,
Viton® and Ryton®.
• 50 series flange fittings reduce leaks and allow various inlet/outlet connections.

PART NO OUTLET FITTINGS CYCLE TIME
2-WAY ELECTRIC SHUTOFF VALVES

356BEC 50 Series Flange 6.0 sec Two 50 series clamps and
flange fittings are required.
