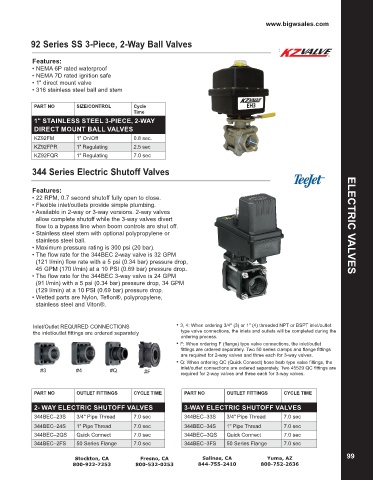

92 Series SS 3-Piece, 2-Way Ball Valves

Features:
• NEMA 6P rated waterproof
• NEMA 7D rated ignition safe
• 1" direct mount valve
• 316 stainless steel ball and stem

PART NO SIZE/CONTROL Cycle
Time
1" STAINLESS STEEL 3-PIECE, 2-WAY
DIRECT MOUNT BALL VALVES
KZ92FM 1" On/Off 0.8 sec.
KZ92FPR 1" Regulating 2.5 sec
KZ92FQR 1" Regulating 7.0 sec

344 Series Electric Shutoff Valves

Features:
• 22 RPM, 0.7 second shutoff fully open to close.
• Flexible inlet/outlets provide simple plumbing.
• Available in 2-way or 3-way versions. 2-way valves
allow complete shutoff while the 3-way valves divert
flow to a bypass line when boom controls are shut off. ELECTRIC VALVES
• Stainless steel stem with optional polypropylene or
stainless steel ball.
• Maximum pressure rating is 300 psi (20 bar).
• The flow rate for the 344BEC 2-way valve is 32 GPM
(121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop,
45 GPM (170 l/min) at a 10 PSI (0.69 bar) pressure drop.
• The flow rate for the 344BEC 3-way valve is 24 GPM
(91 l/min) with a 5 psi (0.34 bar) pressure drop, 34 GPM
(129 l/min) at a 10 PSI (0.69 bar) pressure drop.
• Wetted parts are Nylon, Teflon®, polypropylene,
stainless steel and Viton®.

Inlet/Outlet REQUIRED CONNECTIONS • 3, 4: When ordering 3/4" (3) or 1" (4) threaded NPT or BSPT inlet/outlet
the inlet/outlet fittings are ordered separately type valve connections, the inlets and outlets will be completed during the
ordering process.
• F: When ordering F (flange) type valve connections, the inlet/outlet
fittings are ordered separately. Two 50 series clamps and flange fittings
are required for 2-way valves and three each for 3-way valves.
• Q: When ordering QC (Quick Connect) hose barb type valve fittings, the
#3 #4 #Q #F inlet/outlet connections are ordered separately. Two 45529 QC fittings are
required for 2-way valves and three each for 3-way valves.

PART NO OUTLET FITTINGS CYCLE TIME PART NO OUTLET FITTINGS CYCLE TIME

2- WAY ELECTRIC SHUTOFF VALVES 3-WAY ELECTRIC SHUTOFF VALVES
344BEC–23S 3/4" Pipe Thread 7.0 sec 344BEC–33S 3/4" Pipe Thread 7.0 sec
344BEC–24S 1" Pipe Thread 7.0 sec 344BEC–34S 1" Pipe Thread 7.0 sec
344BEC–2QS Quick Connect 7.0 sec 344BEC–3QS Quick Connect 7.0 sec
344BEC–2FS 50 Series Flange 7.0 sec 344BEC–3FS 50 Series Flange 7.0 sec
