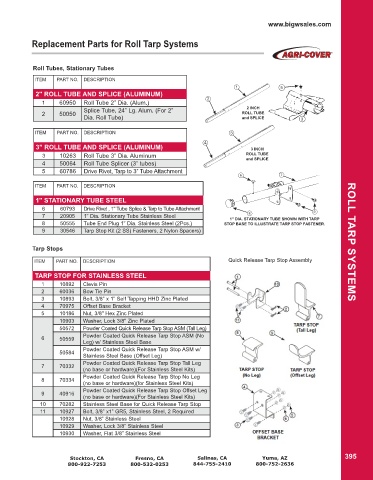

Replacement Parts for Roll Tarp Systems

Roll Tubes, Stationary Tubes
ITEM PART NO. DESCRIPTION
1 5
2" ROLL TUBE AND SPLICE (ALUMINUM)
1 60950 Roll Tube 2” Dia. (Alum.) 2
Splice Tube, 24” Lg. Alum. (For 2” 2 INCH
2 50050 ROLL TUBE
Dia. Roll Tube) and SPLICE 3

ITEM PART NO. DESCRIPTION 3

4
3" ROLL TUBE AND SPLICE (ALUMINUM) 3 INCH
3 10263 Roll Tube 3” Dia. Aluminum ROLL TUBE
and SPLICE
4 50064 Roll Tube Splicer (3” tubes)
5 60786 Drive Rivet, Tarp to 3” Tube Attachment
6 7
ITEM PART NO. DESCRIPTION

1" STATIONARY TUBE STEEL
6 60793 Drive Rivet , 1" Tube Splice & Tarp to Tube Attachment 9
8
7 20905 1” Dia. Stationary Tube Stainless Steel 1" DIA. STATIONARY TUBE SHOWN WITH TARP
8 50555 Tube End Plug 1” Dia. Stainless Steel (2Pcs.) STOP BASE TO ILLUSTRATE TARP STOP FASTENER.
9 30546 Tarp Stop Kit (2 SS) Fasteners, 2 Nylon Spacers)

Tarp Stops ROLL TARP SYSTEMS
ITEM PART NO. DESCRIPTION Quick Release Tarp Stop Assembly

TARP STOP FOR STAINLESS STEEL
1 10892 Clevis Pin
2 60036 Bow Tie Pin
3 10893 Bolt, 3/8” x 1” Self Tapping HHD Zinc Plated
4 70975 Offset Base Bracket
5 10186 Nut, 3/8" Hex Zinc Plated
10903 Washer, Lock 3/8" Zinc Plated
50572 Powder Coated Quick Release Tarp Stop ASM (Tall Leg)
6 50559 Powder Coated Quick Release Tarp Stop ASM (No
Leg) w/ Stainless Steel Base
Powder Coated Quick Release Tarp Stop ASM w/
50584
Stainless Steel Base (Offset Leg)
Powder Coated Quick Release Tarp Stop Tall Leg
7 70332
(no base or hardware)(For Stainless Steel Kits)
Powder Coated Quick Release Tarp Stop No Leg
8 70334
(no base or hardware)(for Stainless Steel Kits)
Powder Coated Quick Release Tarp Stop Offset Leg
9 40916
(no base or hardware)(For Stainless Steel Kits)
10 70282 Stainless Steel Base for Quick Release Tarp Stop
11 10927 Bolt, 3/8” x1” GR5, Stainless Steel, 2 Required
10928 Nut, 3/8” Stainless Steel
10929 Washer, Lock 3/8” Stainless Steel
10930 Washer, Flat 3/8” Stainless Steel
