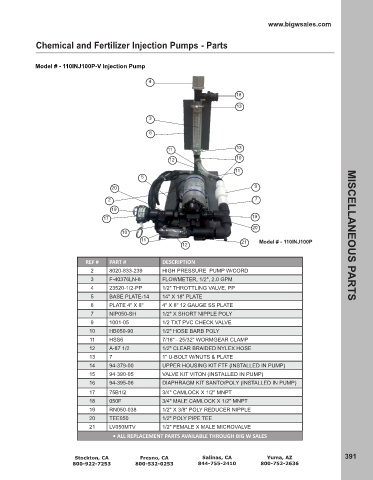

Chemical and Fertilizer Injection Pumps - Parts
Model # - 110INJ100P-V Injection Pump
4
18
13
3
6
11 13
12 10
11
5
20 9
2 7
19
17 19
20
10
11 21 Model # - 110INJ100P MISCELLANEOUS PARTS
12
REF # PART # DESCRIPTION
2 8020-833-239 HIGH PRESSURE PUMP W/CORD
3 F-40376LN-8 FLOWMETER, 1/2", 2.0 GPM
4 23520-1/2-PP 1/2" THROTTLING VALVE, PP
5 BASE PLATE-14 14" X 18" PLATE
6 PLATE 4" X 8" 4" X 8" 12 GAUGE SS PLATE
7 NIP050-SH 1/2" X SHORT NIPPLE POLY
9 1001-05 1/2 TXT PVC CHECK VALVE
10 HB050-90 1/2" HOSE BARB POLY
11 HSS6 7/16" - 25/32" WORMGEAR CLAMP
12 A-87 1/2 1/2" CLEAR BRAIDED NYLEX HOSE
13 7 1" U-BOLT W/NUTS & PLATE
14 94-379-00 UPPER HOUSING KIT FTF (INSTALLED IN PUMP)
15 94-390-05 VALVE KIT VITON (INSTALLED IN PUMP)
16 94-395-06 DIAPHRAGM KIT SANTO/POLY (INSTALLED IN PUMP)
17 75B1/2 3/4" CAMLOCK X 1/2" MNPT
18 050F 3/4" MALE CAMLOCK X 1/2" MNPT
19 RN050-038 1/2" X 3/8" POLY REDUCER NIPPLE
20 TEE050 1/2" POLY PIPE TEE
21 LV050MTV 1/2" FEMALE X MALE MICROVALVE
• ALL REPLACEMENT PARTS AVAILABLE THROUGH BIG W SALES
