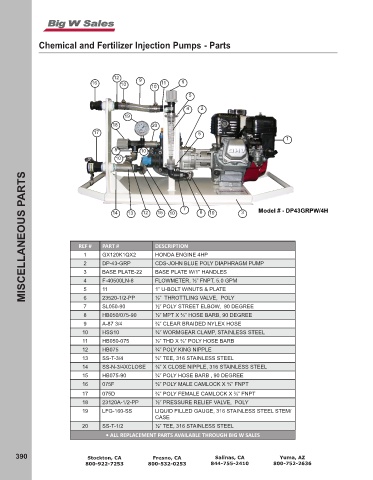

Chemical and Fertilizer Injection Pumps - Parts

12 9
16 10 10 11 6
5

4 2
19
18 20
17 5
1

8 10
10

MISCELLANEOUS PARTS

7 Model # - DP43GRPW/4H
14 13 12 15 10 8 10 3

REF # PART # DESCRIPTION
1 GX120K1QX2 HONDA ENGINE 4HP
2 DP-43-GRP CDS-JOHN BLUE POLY DIAPHRAGM PUMP
3 BASE PLATE-22 BASE PLATE W/1" HANDLES
4 F-40500LN-8 FLOWMETER, ½” FNPT, 5.0 GPM
5 11 1” U-BOLT W/NUTS & PLATE
6 23520-1/2-PP ½” THROTTLING VALVE, POLY
7 SL050-90 ½” POLY STREET ELBOW, 90 DEGREE
8 HB050/075-90 ½” MPT X ¾” HOSE BARB, 90 DEGREE
9 A-87 3/4 ¾” CLEAR BRAIDED NYLEX HOSE
10 HSS10 ¾” WORMGEAR CLAMP, STAINLESS STEEL
11 HB050-075 ½” THD X ¾” POLY HOSE BARB
12 HB075 ¾” POLY KING NIPPLE
13 SS-T-3/4 ¾” TEE, 316 STAINLESS STEEL
14 SS-N-3/4XCLOSE ¾” X CLOSE NIPPLE, 316 STAINLESS STEEL
15 HB075-90 ¾” POLY HOSE BARB , 90 DEGREE
16 075F ¾” POLY MALE CAMLOCK X ¾” FNPT
17 075D ¾” POLY FEMALE CAMLOCK X ¾” FNPT
18 23120A-1/2-PP ½” PRESSURE RELIEF VALVE, POLY
19 LFG-160-SS LIQUID FILLED GAUGE, 316 STAINLESS STEEL STEM/
CASE
20 SS-T-1/2 ½” TEE, 316 STAINLESS STEEL
• ALL REPLACEMENT PARTS AVAILABLE THROUGH BIG W SALES
