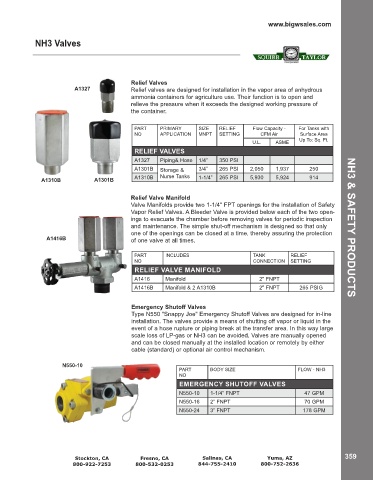

Page 361 - 2022 Online Catalog

www.bigwsales.com

NH3 Valves

Relief Valves
A1327 Relief valves are designed for installation in the vapor area of anhydrous
ammonia containers for agriculture use. Their function is to open and
relieve the pressure when it exceeds the designed working pressure of
the container.

PART PRIMARY SIZE RELIEF Flow Capacity - For Tanks with
NO APPLICATION MNPT SETTING CFM Air Surface Area
Up To: Sq. Ft.
U.L. ASME
RELIEF VALVES
A1327 Piping& Hose 1/4” 350 PSI
A1301B Storage & 3/4” 265 PSI 2,050 1,937 250
A1310B A1301B A1310B Nurse Tanks 1-1/4” 265 PSI 5,930 5,924 914

Relief Valve Manifold
Valve Manifolds provide two 1-1/4" FPT openings for the installation of Safety
Vapor Relief Valves. A Bleeder Valve is provided below each of the two open-
ings to evacuate the chamber before removing valves for periodic inspection
and maintenance. The simple shut-off mechanism is designed so that only NH3 & SAFETY PRODUCTS
one of the openings can be closed at a time, thereby assuring the protection
A1416B of one valve at all times.

PART INCLUDES TANK RELIEF
NO CONNECTION SETTING
RELIEF VALVE MANIFOLD
A1416 Manifold 2" FNPT
A1416B Manifold & 2 A1310B 2" FNPT 265 PSIG

Emergency Shutoff Valves
Type N550 "Snappy Joe" Emergency Shutoff Valves are designed for in-line
installation. The valves provide a means of shutting off vapor or liquid in the
event of a hose rupture or piping break at the transfer area. In this way large
scale loss of LP-gas or NH3 can be avoided. Valves are manually opened
and can be closed manually at the installed location or remotely by either
cable (standard) or optional air control mechanism.

N550-10
PART BODY SIZE FLOW - NH3
NO
EMERGENCY SHUTOFF VALVES
N550-10 1-1/4” FNPT 47 GPM
N550-16 2” FNPT 70 GPM
N550-24 3” FNPT 178 GPM
