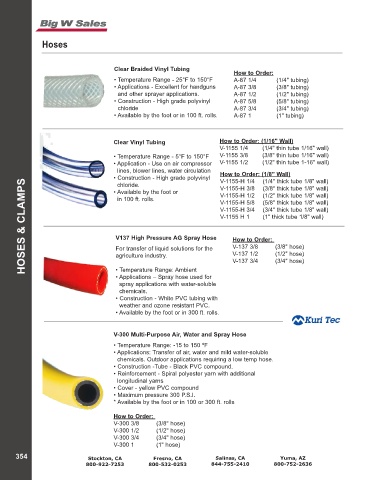

Page 356 - 2022 Online Catalog

Hoses

Clear Braided Vinyl Tubing
How to Order:
• Temperature Range - 25°F to 150°F A-87 1/4 (1/4" tubing)
• Applications - Excellent for handguns A-87 3/8 (3/8" tubing)
and other sprayer applications. A-87 1/2 (1/2" tubing)
• Construction - High grade polyvinyl A-87 5/8 (5/8" tubing)
chloride A-87 3/4 (3/4" tubing)
• Available by the foot or in 100 ft. rolls. A-87 1 (1" tubing)

Clear Vinyl Tubing How to Order: (1/16" Wall)
V-1155 1/4 (1/4" thin tube 1/16" wall)
• Temperature Range - 5°F to 150°F V-1155 3/8 (3/8" thin tube 1/16" wall)
• Application - Use on air compressor V-1155 1/2 (1/2" thin tube 1-16" wall)
lines, blower lines, water circulation How to Order: (1/8" Wall)
• Construction - High grade polyvinyl V-1155-H 1/4 (1/4" thick tube 1/8" wall)
HOSES & CLAMPS V137 High Pressure AG Spray Hose V-1155-H 5/8 (5/8" thick tube 1/8" wall)
chloride.
V-1155-H 3/8 (3/8" thick tube 1/8" wall)
• Available by the foot or
V-1155-H 1/2
(1/2" thick tube 1/8" wall)
in 100 ft. rolls.
V-1155-H 3/4
(3/4" thick tube 1/8" wall)
(1" thick tube 1/8" wall)
V-1155 H 1
How to Order:
(3/8" hose)
V-137 3/8
For transfer of liquid solutions for the
agriculture industry.
(3/4" hose)
V-137 3/4
• Temperature Range: Ambient
• Applications – Spray hose used for V-137 1/2 (1/2" hose)
spray applications with water-soluble
chemicals.
• Construction - White PVC tubing with
weather and ozone resistant PVC.
• Available by the foot or in 300 ft. rolls.

V-300 Multi-Purpose Air, Water and Spray Hose
• Temperature Range: -15 to 150 ºF
• Applications: Transfer of air, water and mild water-soluble
chemicals. Outdoor applications requiring a low temp hose.
• Construction -Tube - Black PVC compound.
• Reinforcement - Spiral polyester yarn with additional
longitudinal yarns
• Cover - yellow PVC compound
• Maximum pressure 300 P.S.I.
* Available by the foot or in 100 or 300 ft. rolls

How to Order:
V-300 3/8 (3/8" hose)
V-300 1/2 (1/2" hose)
V-300 3/4 (3/4" hose)
V-300 1 (1" hose)
