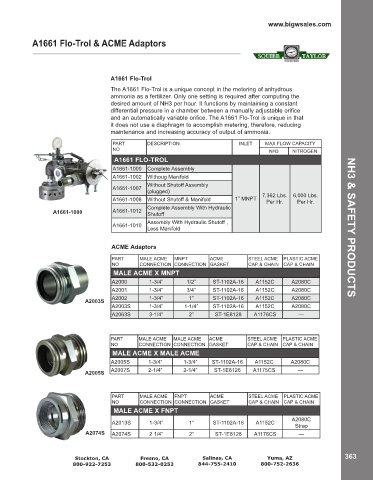

Page 365 - 2022 Online Catalog

www.bigwsales.com

A1661 Flo-Trol & ACME Adaptors

A1661 Flo-Trol
The A1661 Flo-Trol is a unique concept in the metering of anhydrous
ammonia as a fertilizer. Only one setting is required after computing the
desired amount of NH3 per hour. It functions by maintaining a constant
differential pressure in a chamber between a manually adjustable orifice
and an automatically variable orifice. The A1661 Flo-Trol is unique in that
it does not use a diaphragm to accomplish metering, therefore, reducing
maintenance and increasing accuracy of output of ammonia.

PART DESCRIPTION INLET MAX FLOW CAPACITY
NO NH3 NITROGEN
A1661 FLO-TROL
A1661-1000 Complete Assembly
A1661-1002 Withoug Manifold
Without Shutoff Assembly
A1661-1007
(plugged)
A1661-1008 Without Shutoff & Manifold 1” MNPT 7,362 Lbs. 6,000 Lbs.
Per Hr.
Per Hr.
Complete Assembly With Hydraulic
A1661-1000 A1661-1012 Shutoff
Assembly With Hydraulic Shutoff ,
A1661-1010
Less Manifold NH3 & SAFETY PRODUCTS

ACME Adaptors

PART MALE ACME MNPT ACME STEEL ACME PLASTIC ACME
NO CONNECTION CONNECTION GASKET CAP & CHAIN CAP & CHAIN
MALE ACME X MNPT
A2000 1-3/4” 1/2” ST-1102A-16 A1152C A2080C
A2001 1-3/4” 3/4” ST-1102A-16 A1152C A2080C
A2002 1-3/4” 1” ST-1102A-16 A1152C A2080C
A2003S
A2003S 1-3/4” 1-1/4” ST-1102A-16 A1152C A2080C
A2063S 3-1/4” 2” ST-1E8128 A1176CS —

PART MALE ACME MALE ACME ACME STEEL ACME PLASTIC ACME
NO CONNECTION CONNECTION GASKET CAP & CHAIN CAP & CHAIN
MALE ACME X MALE ACME
A2005S 1-3/4” 1-3/4” ST-1102A-16 A1152C A2080C
A2005S A2007S 2-1/4” 2-1/4” ST-1E8126 A1175CS —

PART MALE ACME FNPT ACME STEEL ACME PLASTIC ACME
NO CONNECTION CONNECTION GASKET CAP & CHAIN CAP & CHAIN
MALE ACME X FNPT
A2080C
A2013S 1-3/4” 1” ST-1102A-16 A1152C
Strap
A2074S A2074S 2 1/4” 2” ST-1E8128 A1176CS —
